Xhorse VVDI Prog Read MC9S12DT256 secured connection diagram

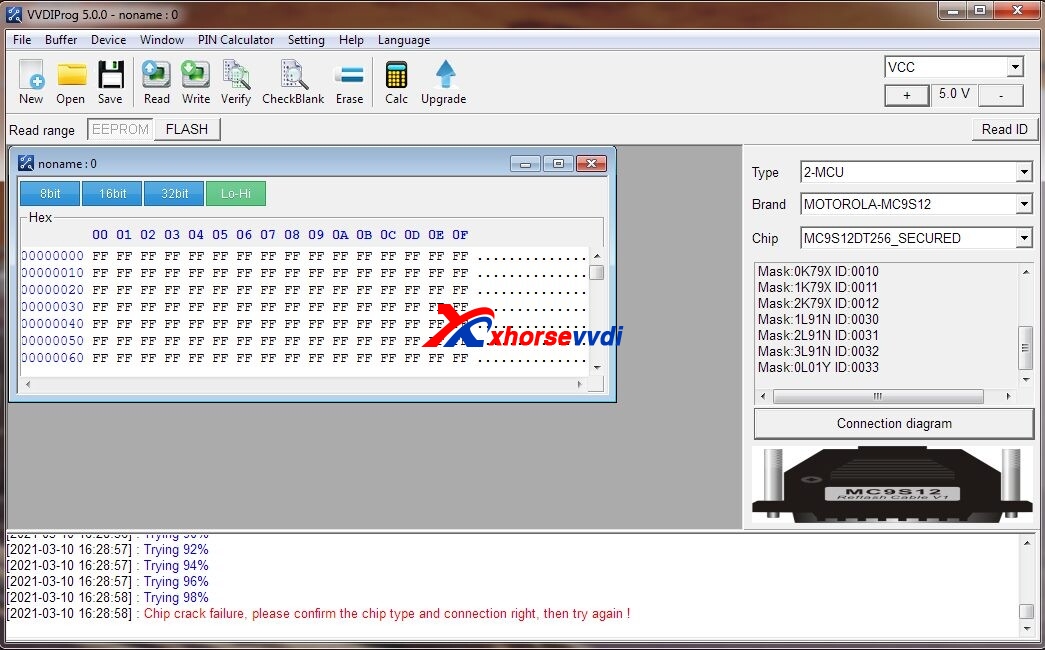

Question: Have Mercedes Benz Vito EZS, I need to read MC9S12DT256 secured with VVDI Prog but it is not possible because it is MB? You need VVDI MB?ID ok but not possible to crack chip.

Answer:

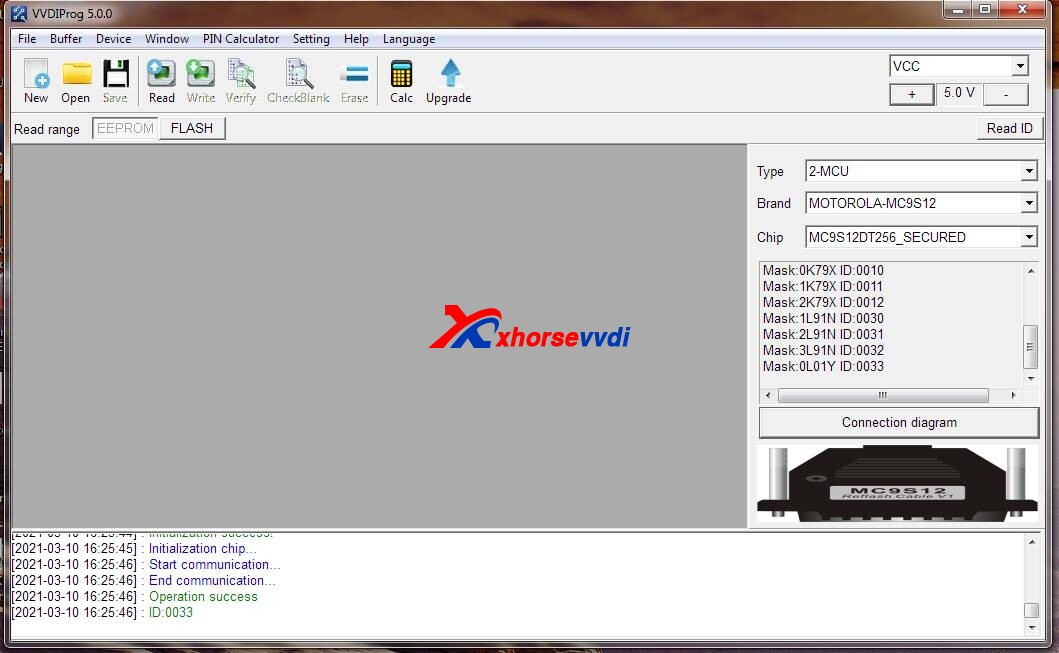

100% that you can read these without issue. Bad connection or bad chip, please check it.

This is the correct connection diagram:

Enjoy!
