Xhorse VVDI PROG Pinout for Opel, Ford PSA etc

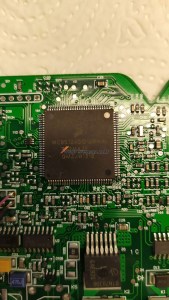

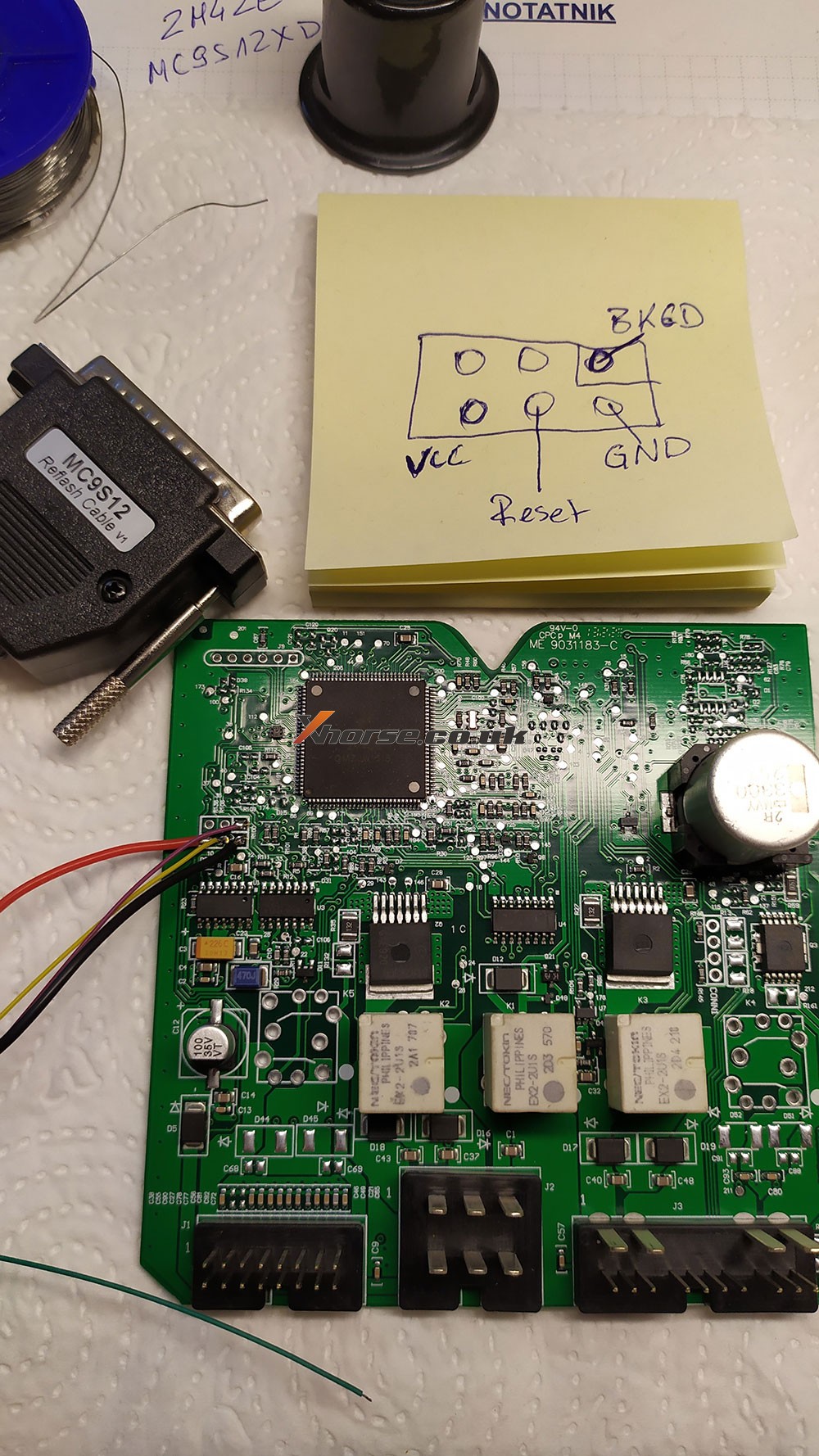

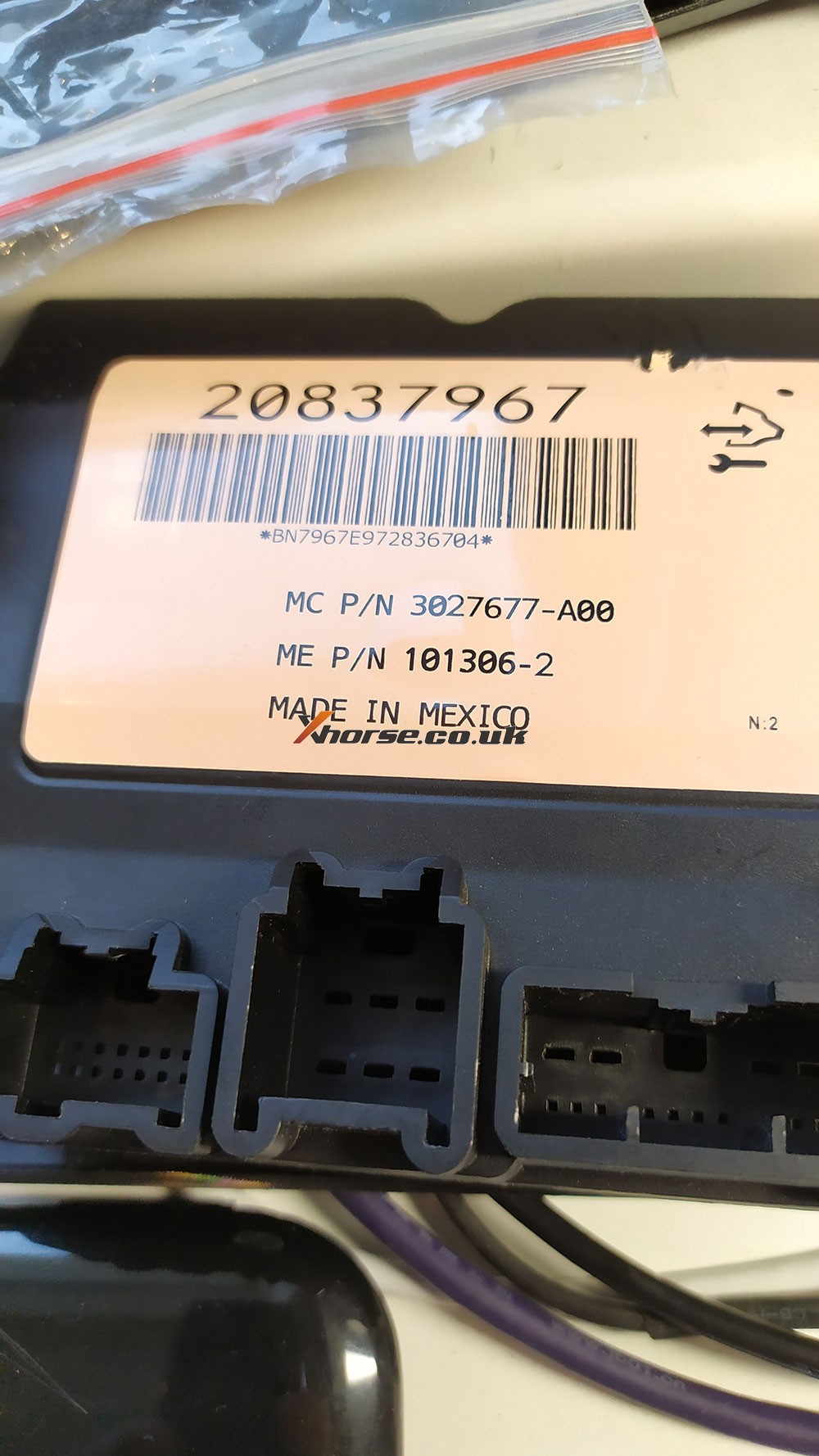

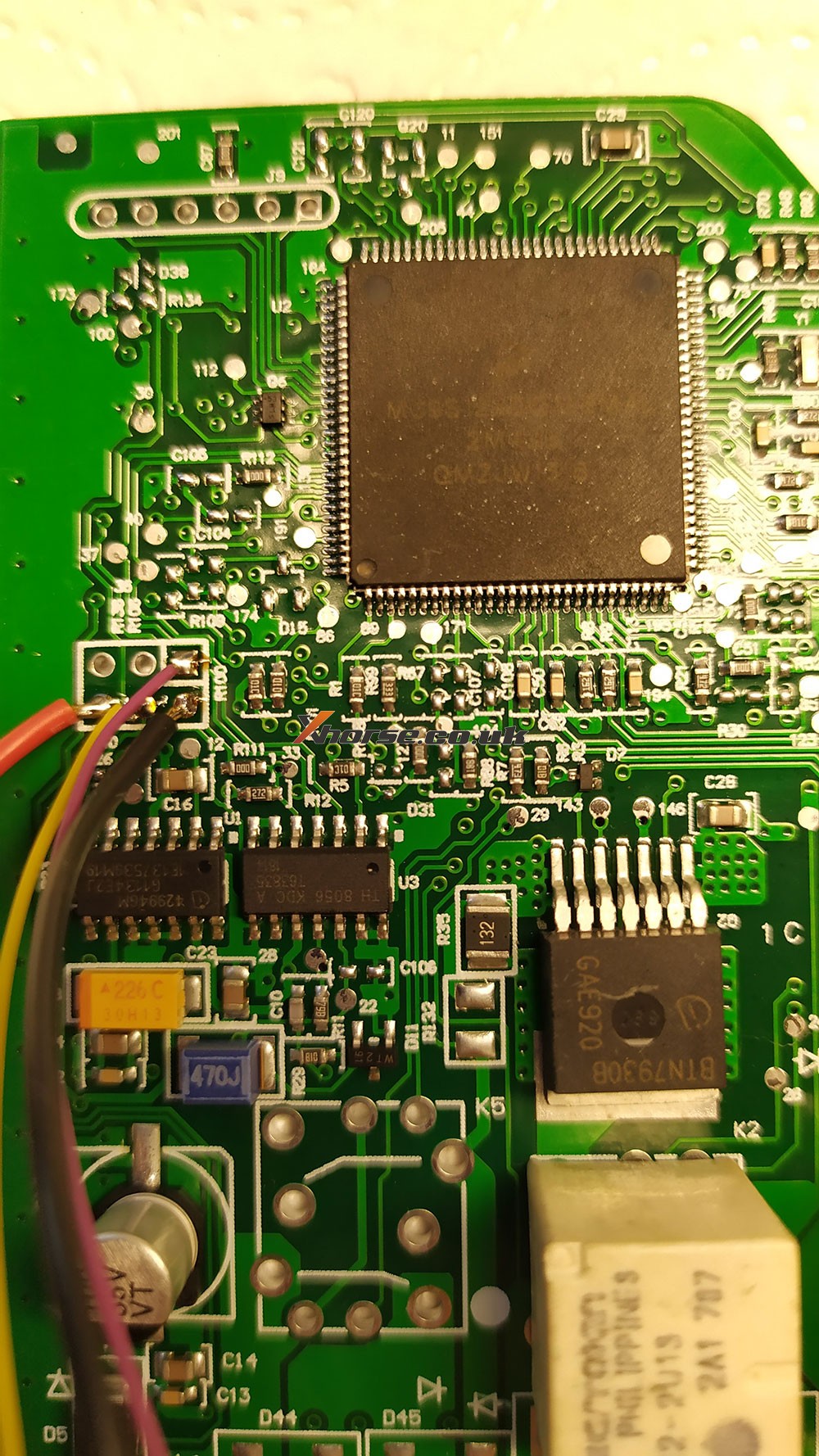

Opel Insignia 2011 year

Body R/W VVDI PROG

Pinout for all of you

Mask 2M42E

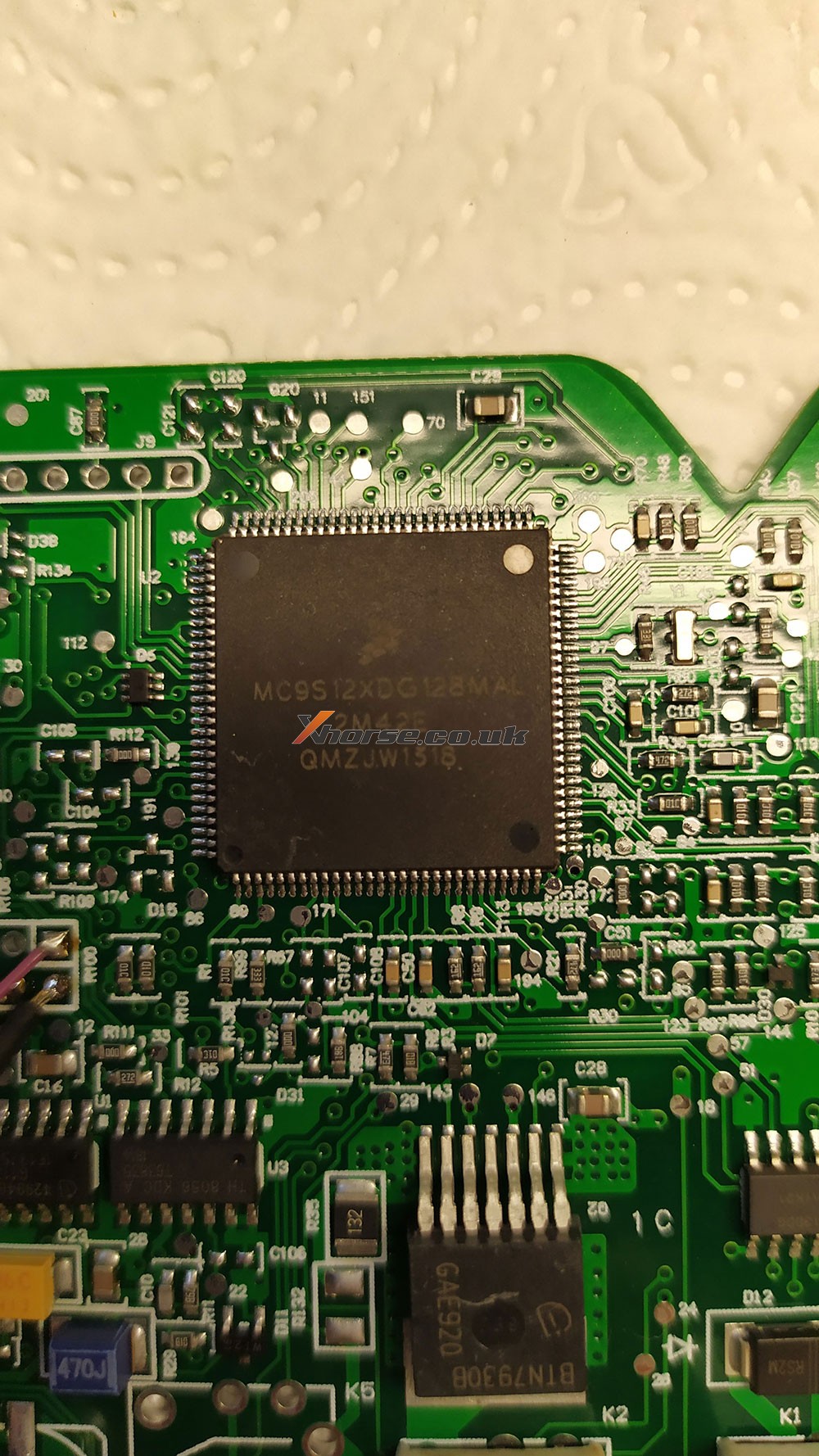

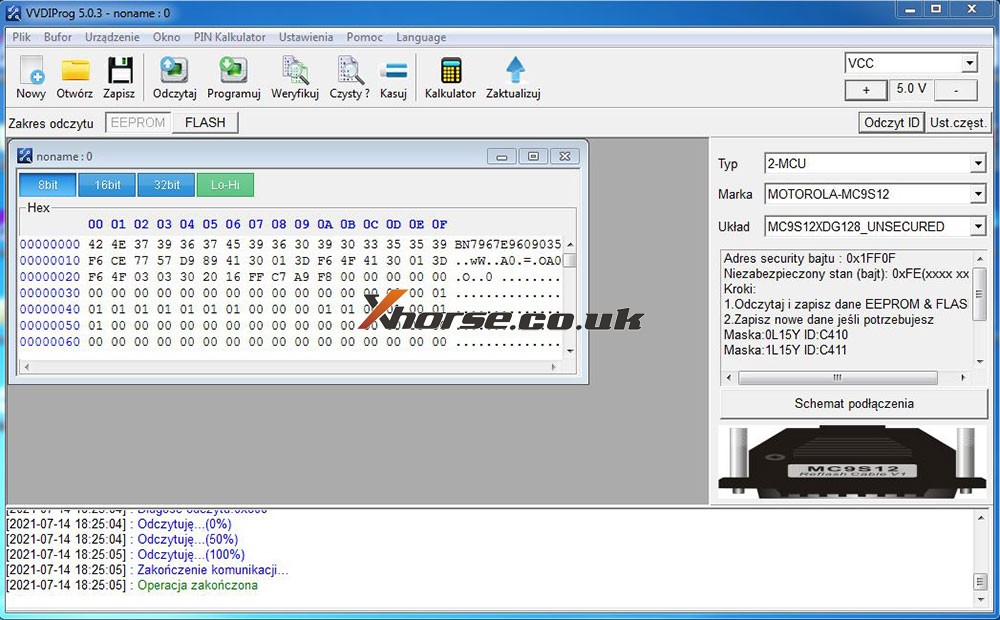

MC9S12XDG128MAL

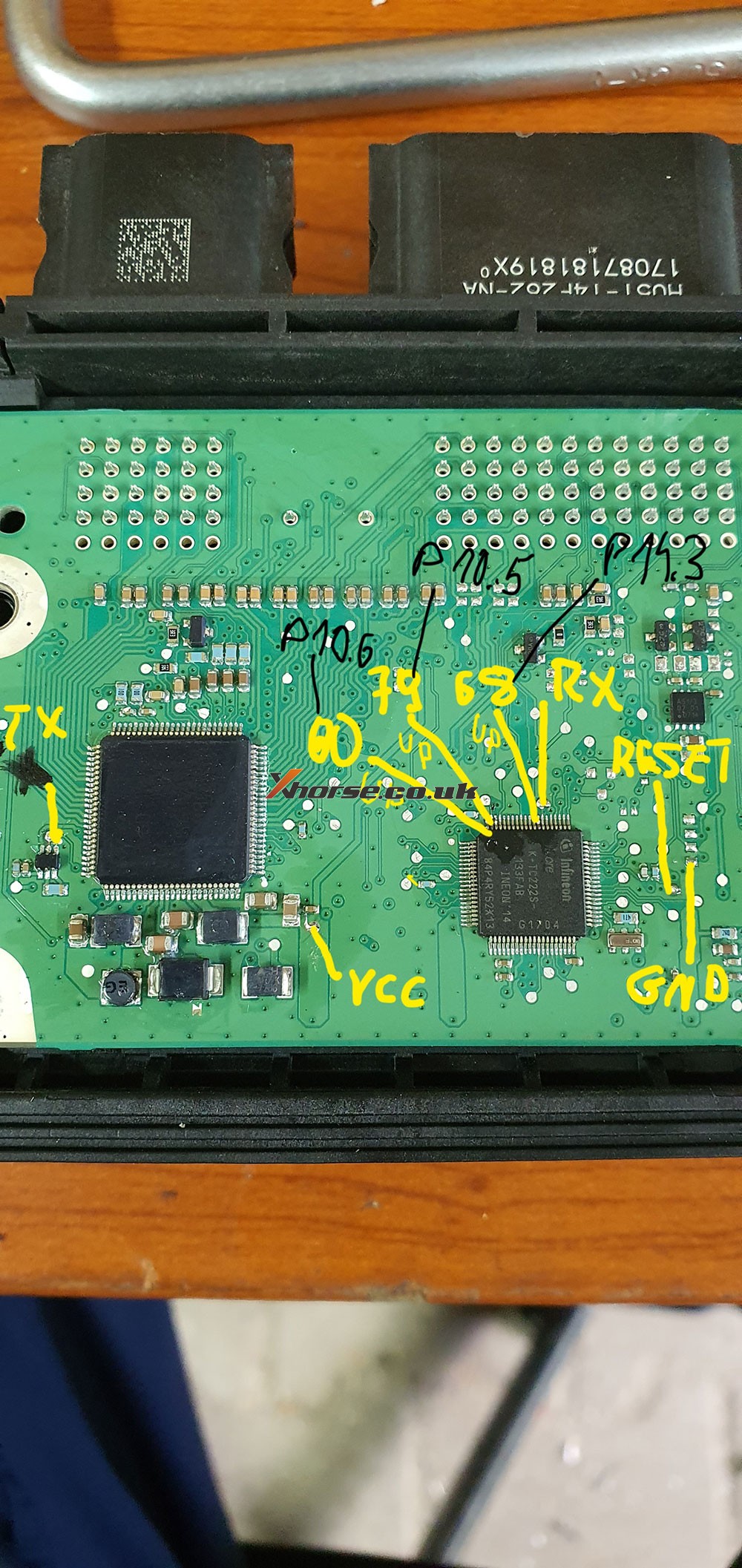

VVDI PROG Ford fiesta 2017 Pinout

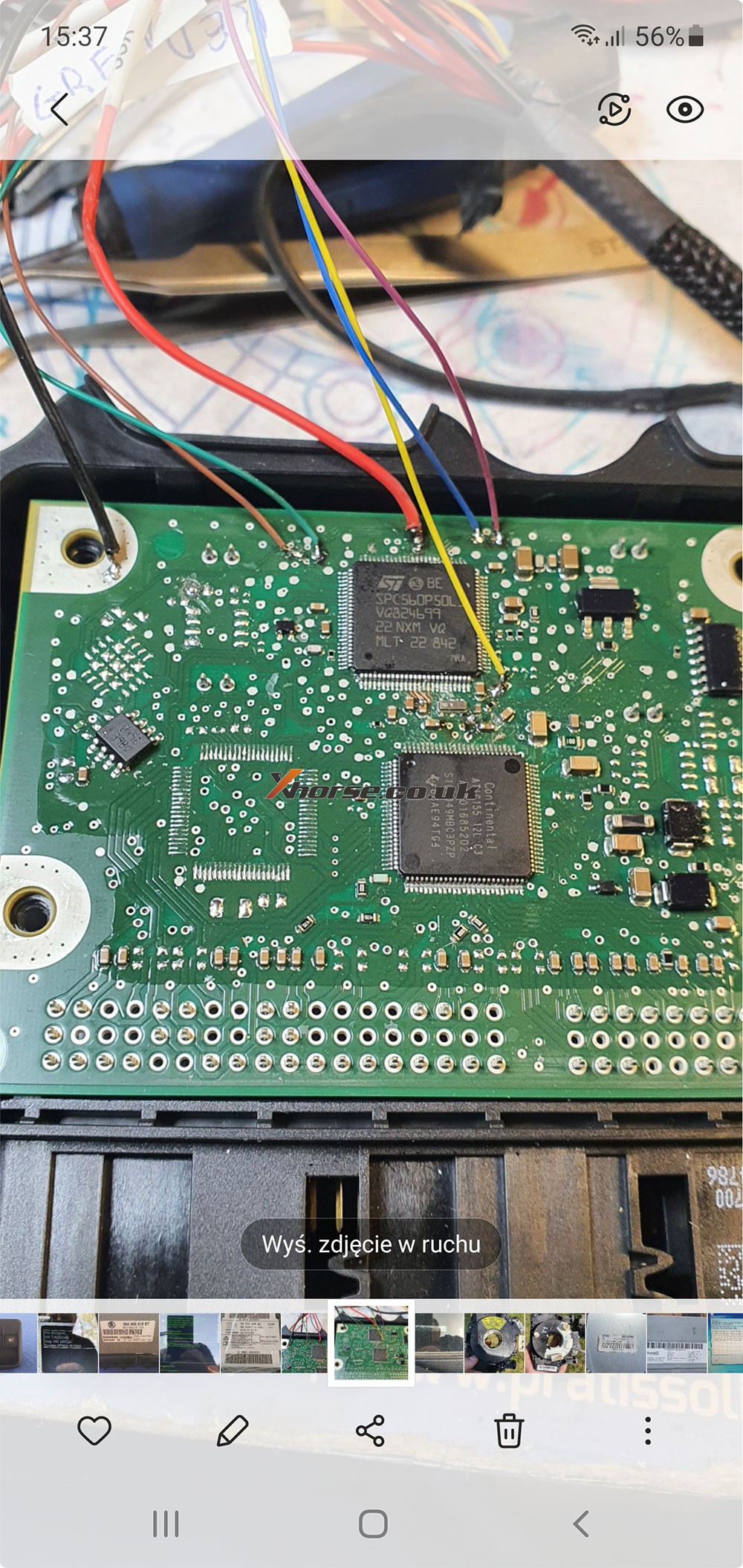

VVDI PROG PSA SPC560 Pinout

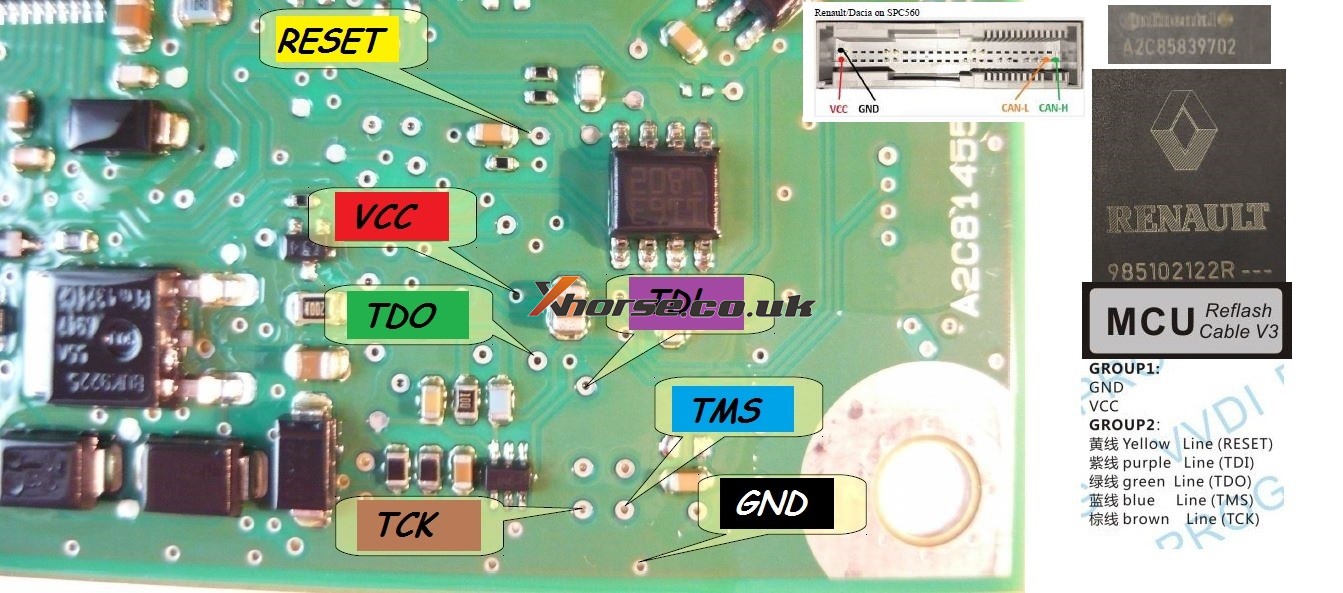

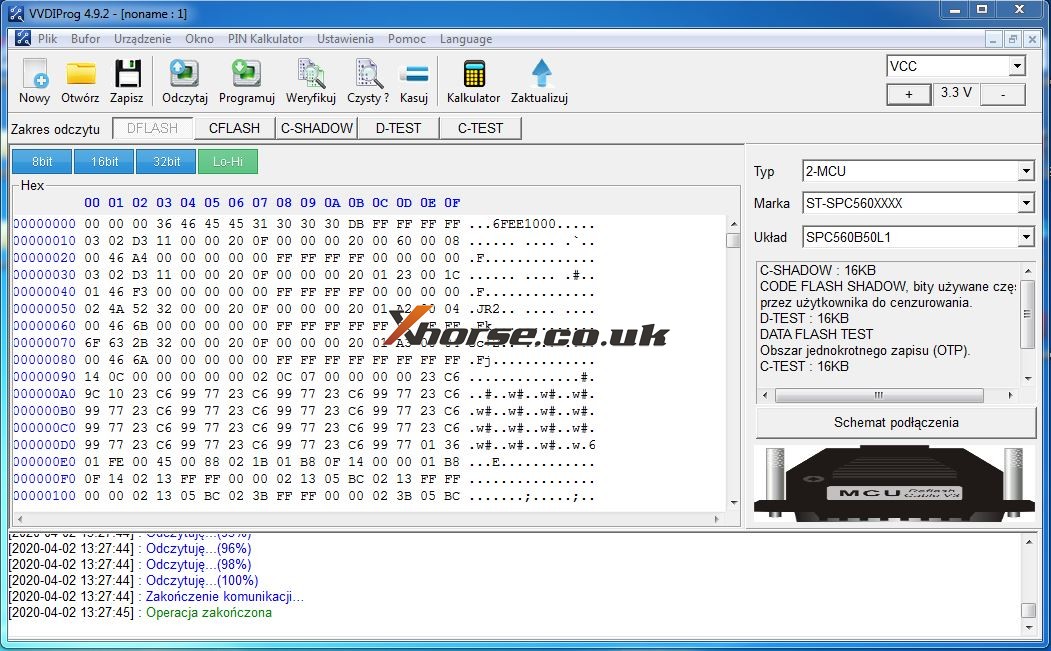

Renault / Dacia SPC560

Pinout xprog edit for vvdi
Test ok

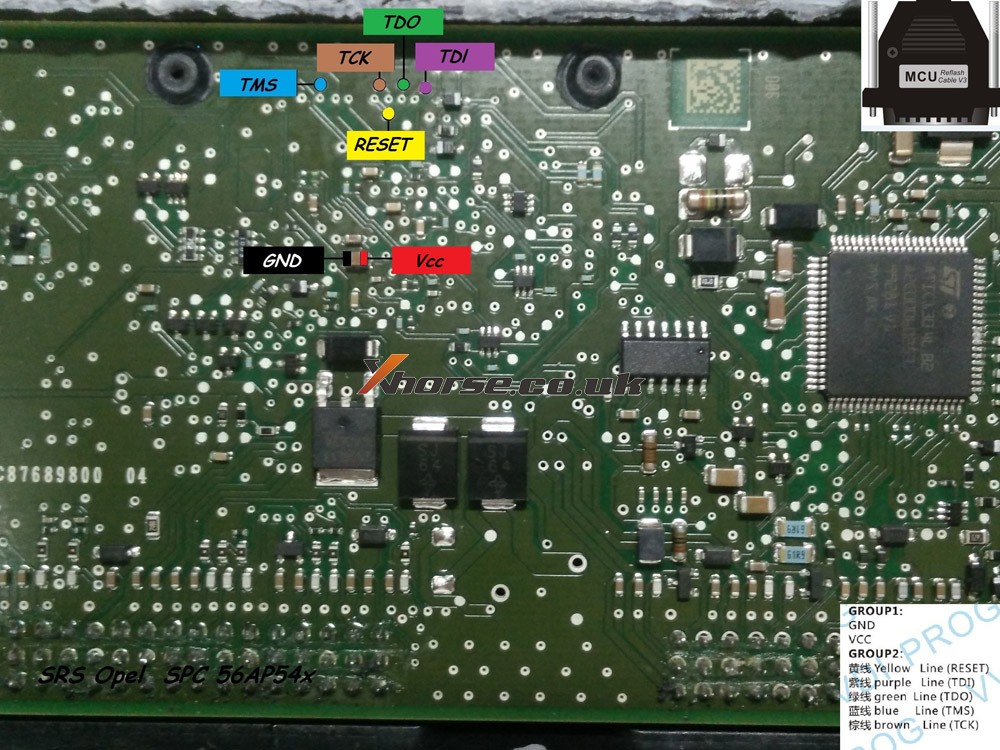

Opel SPC 56AP54x
Pinout CPT edit for vvdi prog

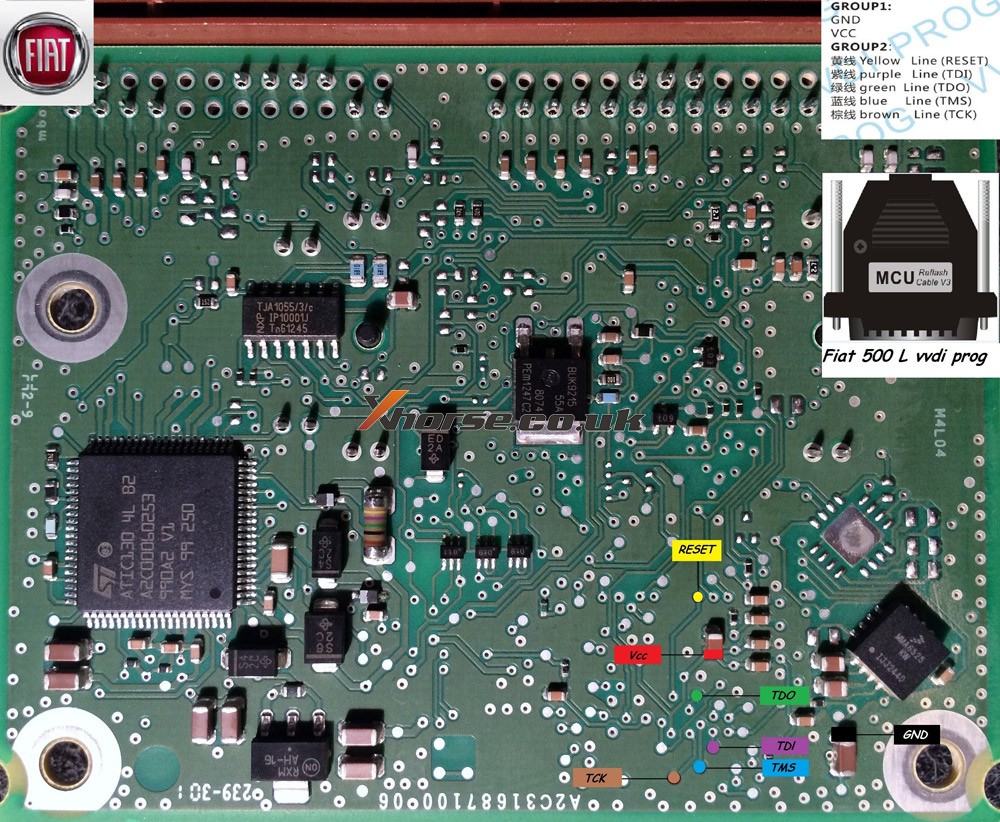

Fiat 500 L
MPC/SPC
CPT edit for vvdi prog

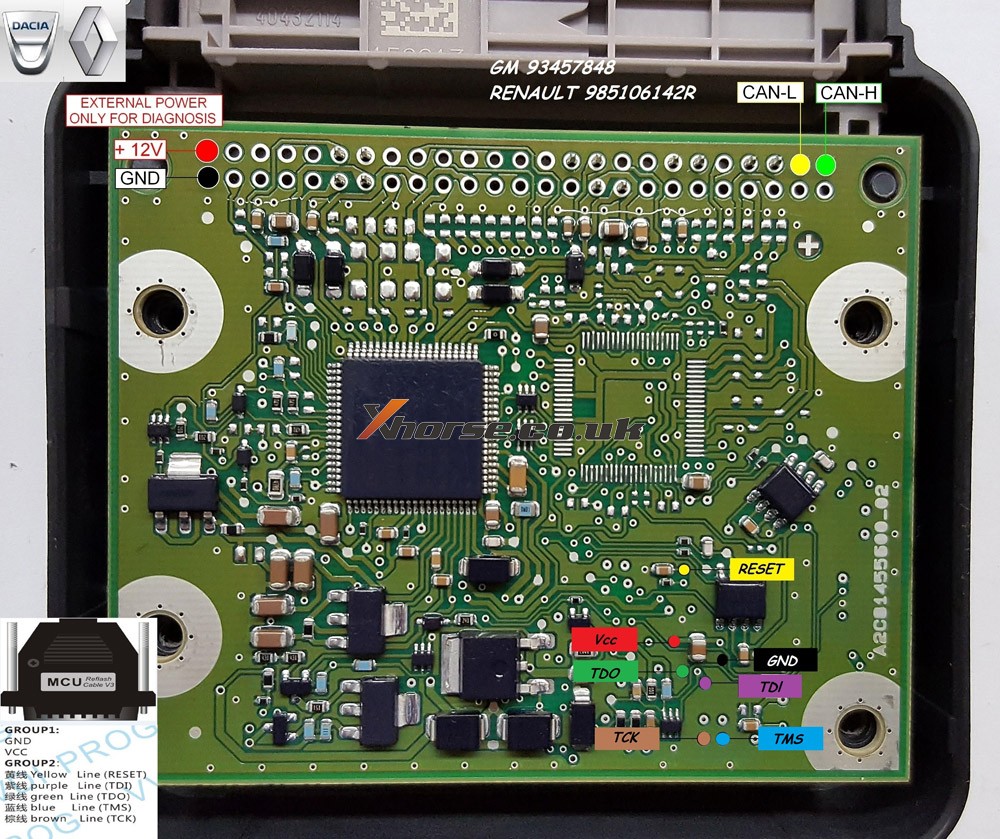

Dacia / Renault v2
pinout CPT edit for VVDI prog

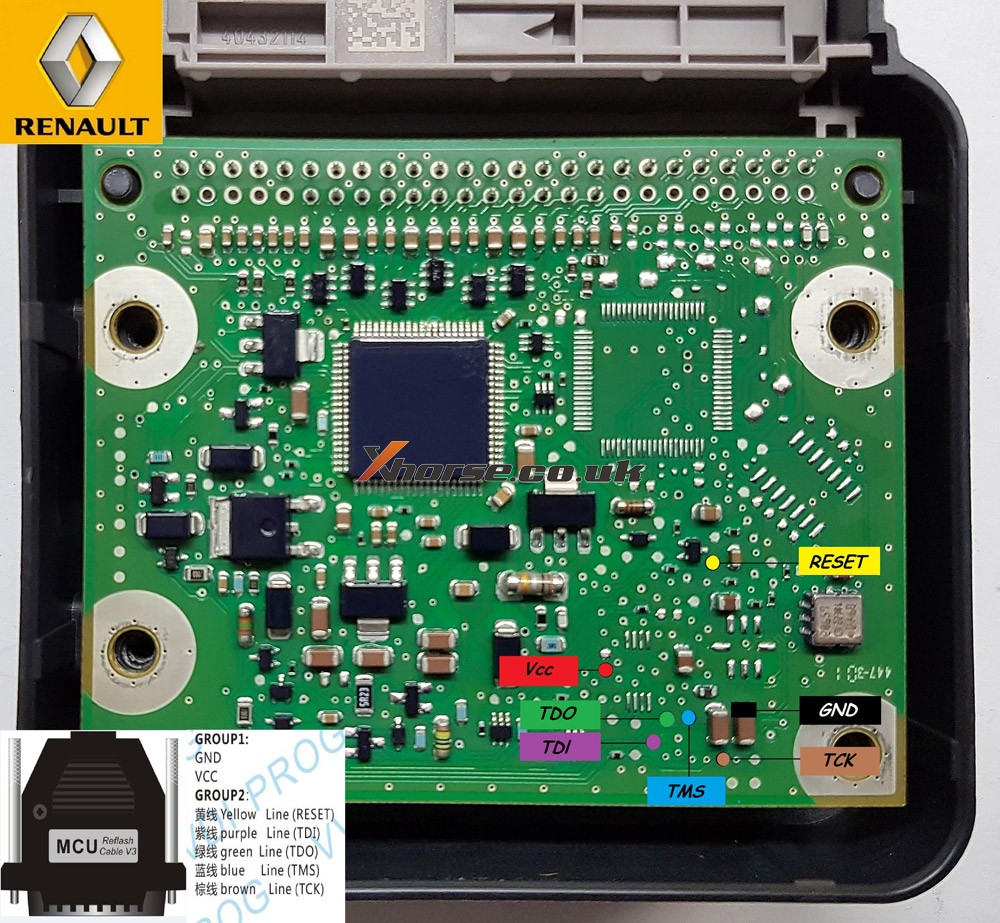

Dacia /Renault v3
pinout CPT edit for vvdi prog

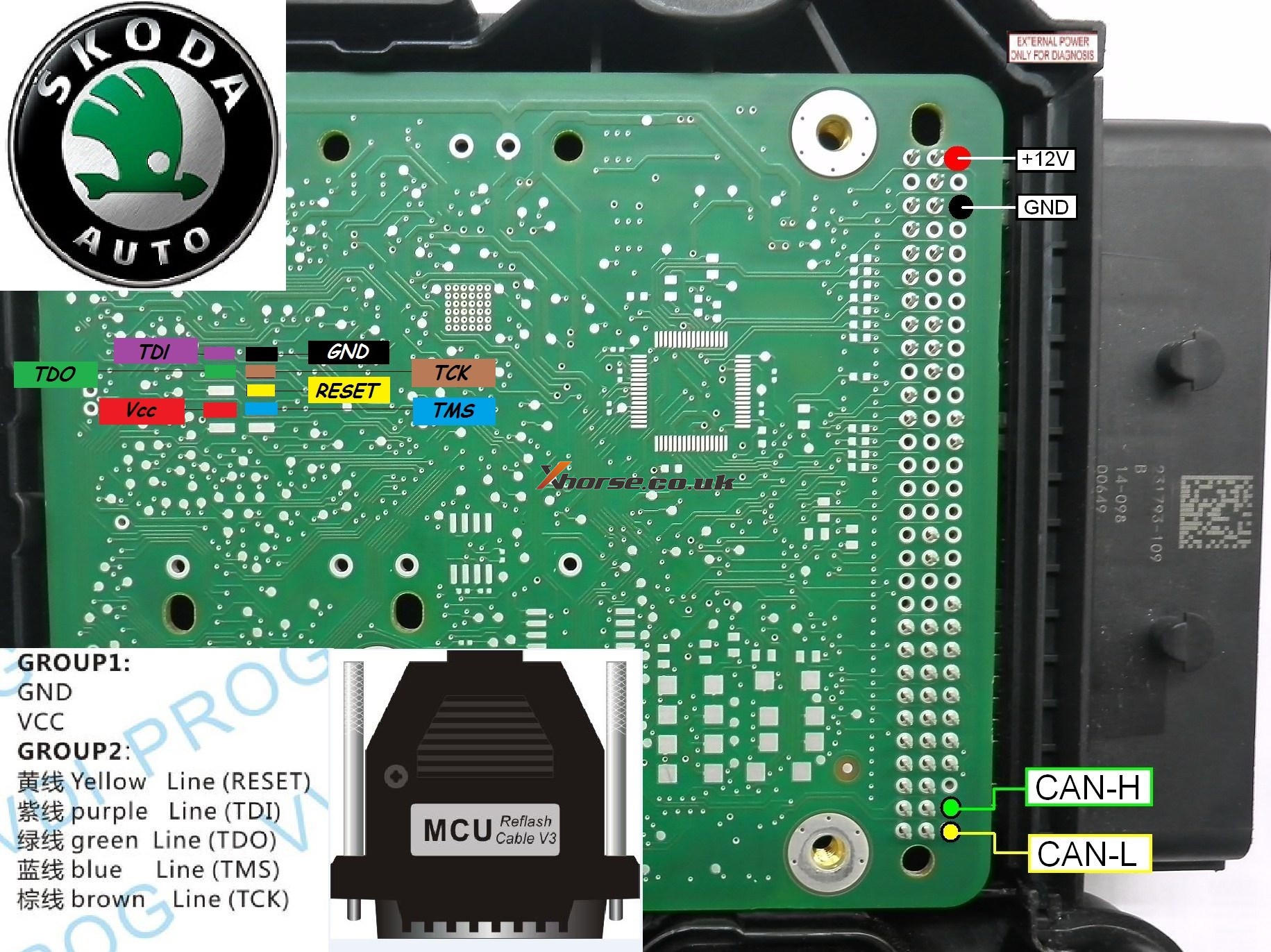

Skoda SPC5604-114pin
pinout CPT edit for VVDI prog

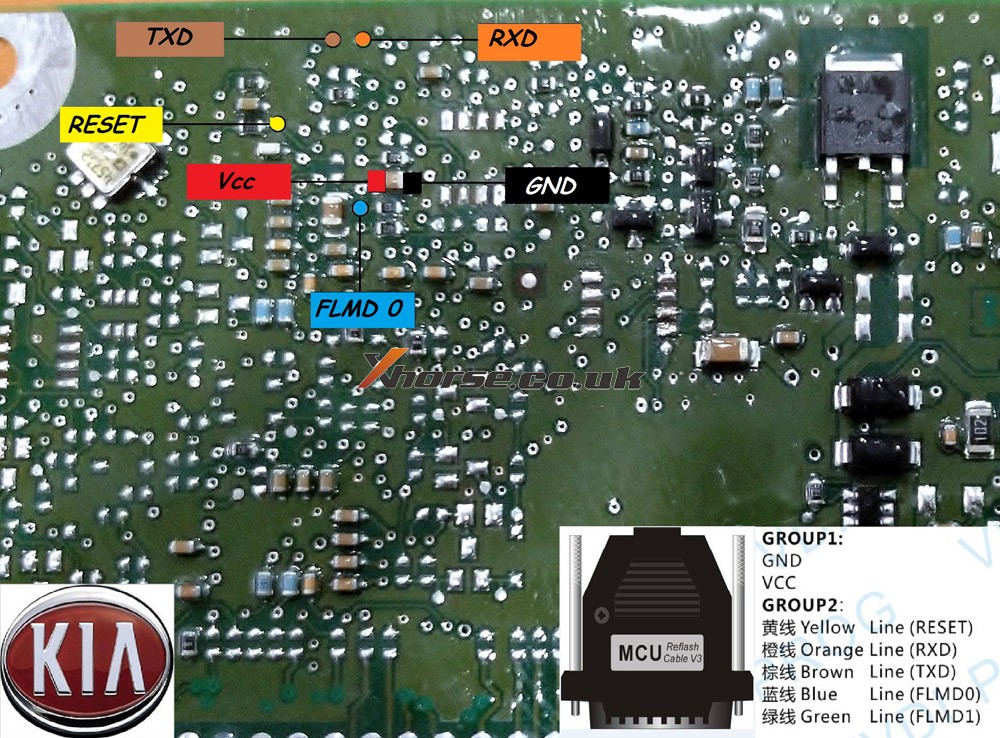

Kia NEC
pinout CPT edit for VVDI prog

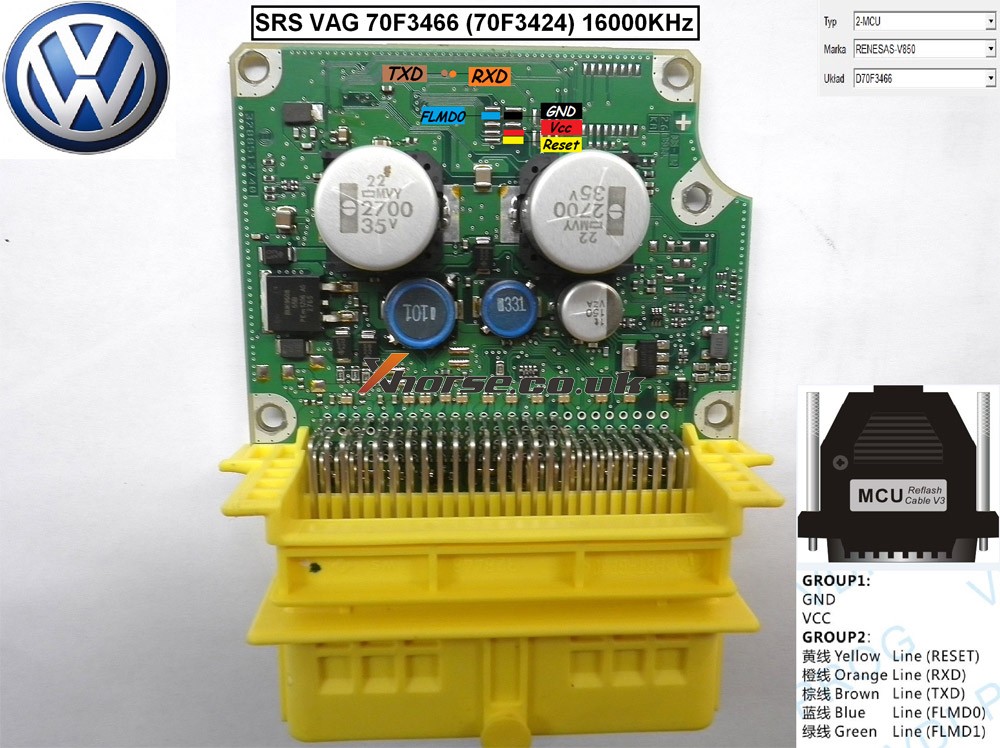

VW renesas v850
pinout CPT edit for VVDI prog

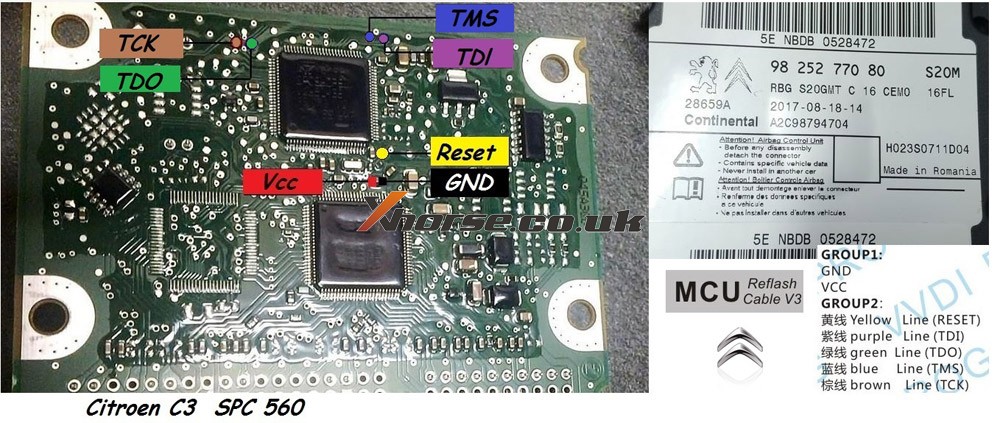

Citroen C3 SPC560





MB_W222_SRS_SPC560P5_jtag

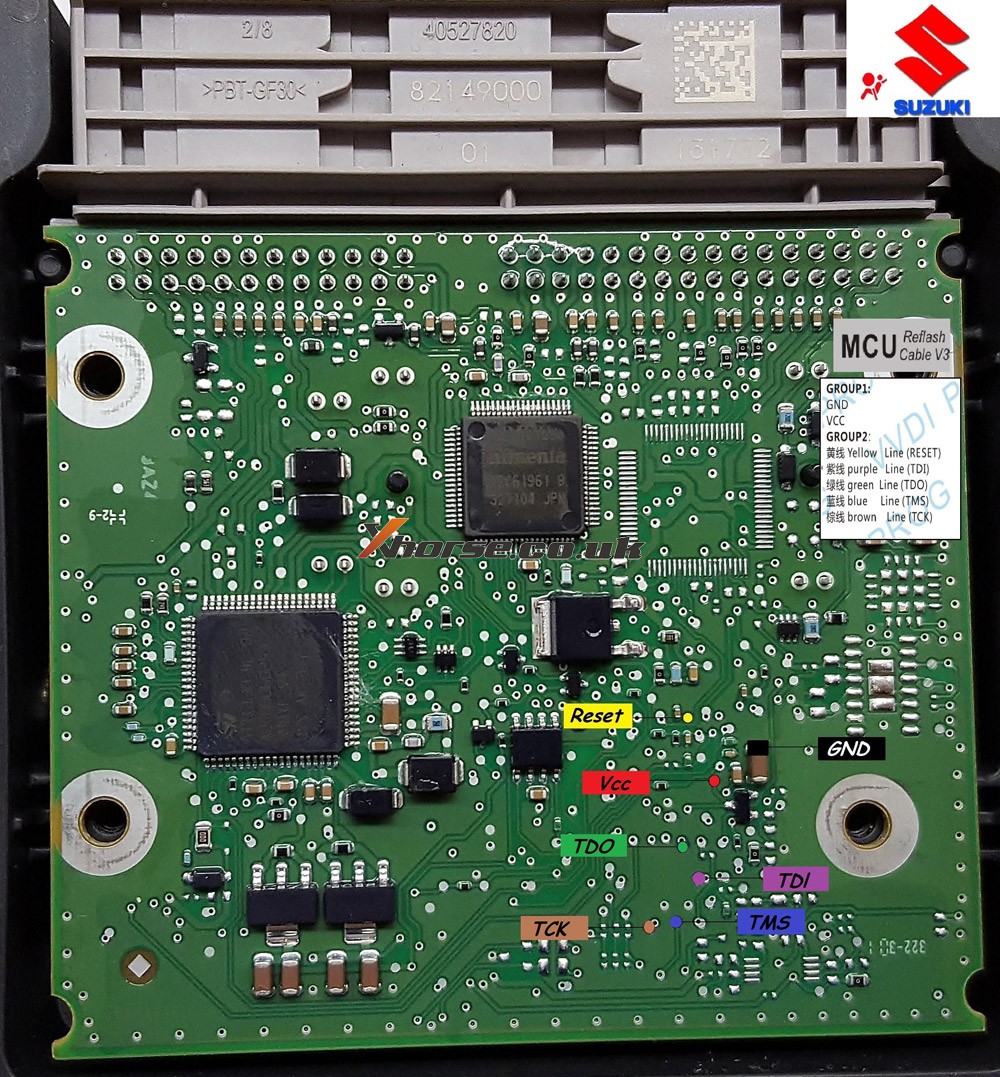

Suzuki_SRS_SPC560P50_pinout

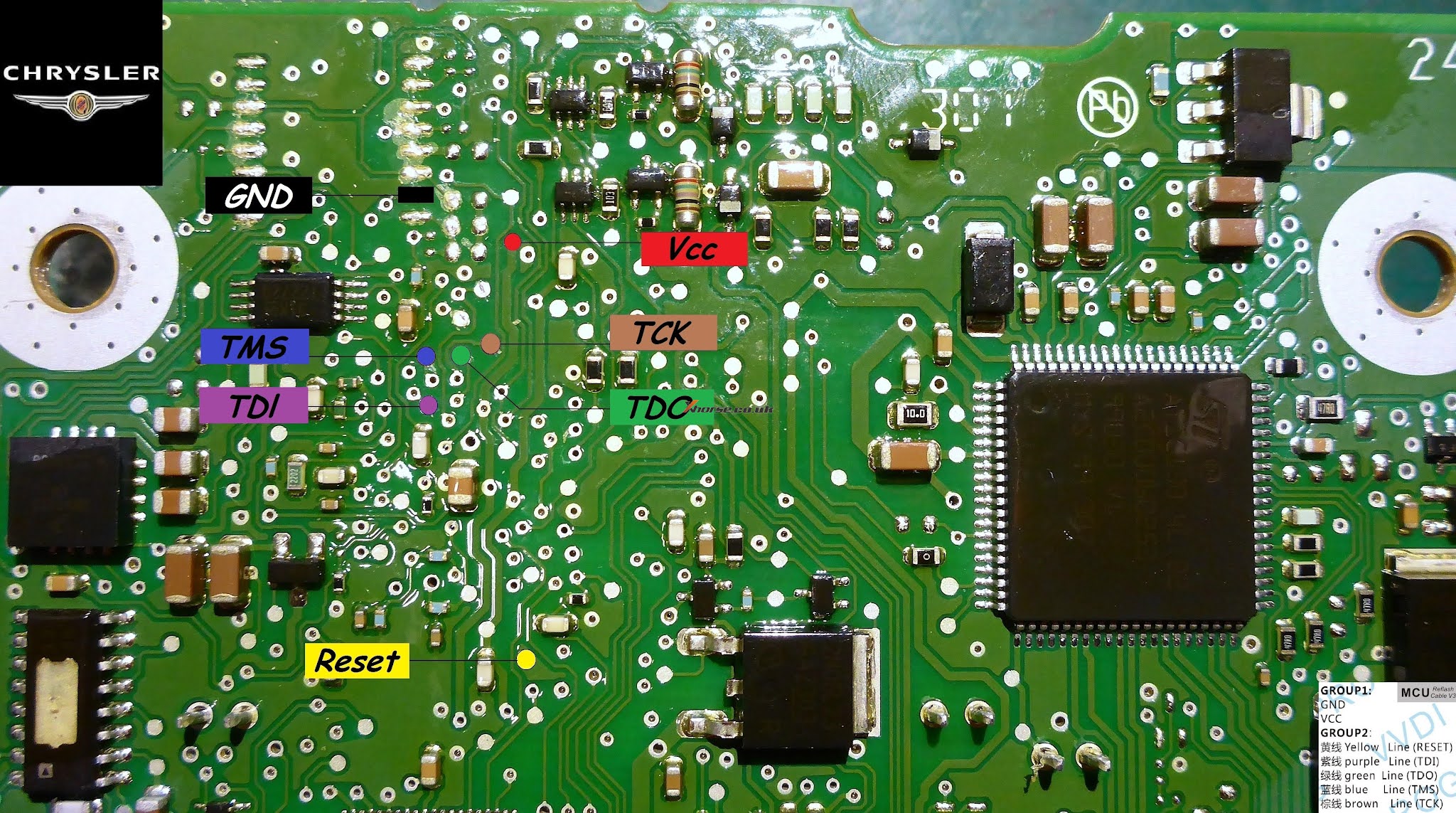

Chrysler MPC SRS
