Hi,guys,Xhorsevvdi shows your How to use Xhorse Dolphin XP007 Key Cutting Machine to calibrate Clamp, and to make key here

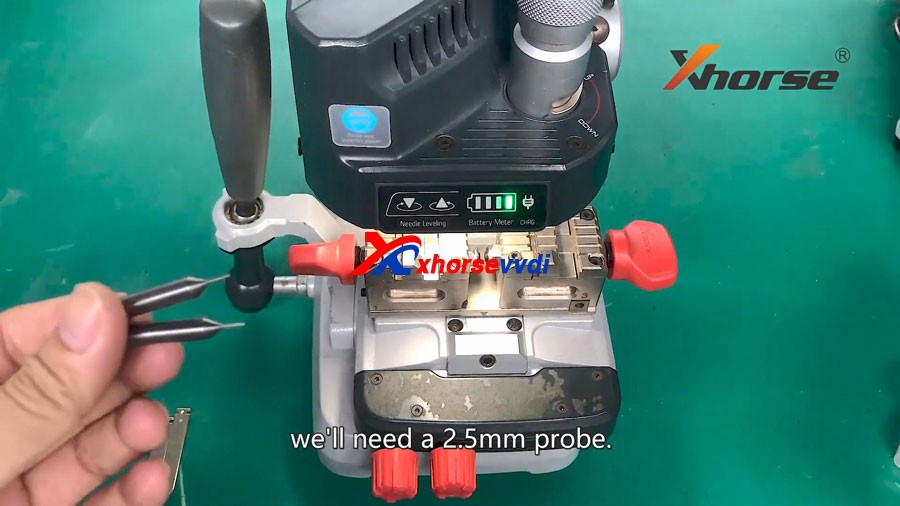

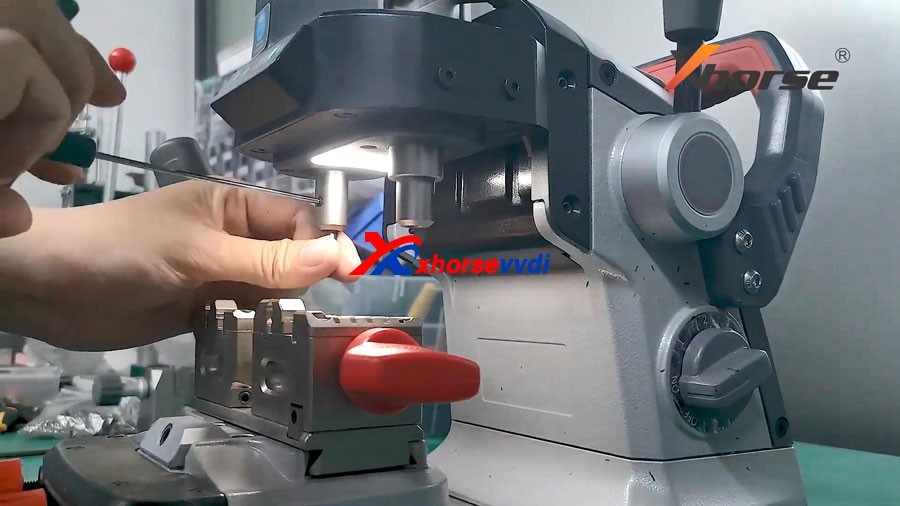

Step-by-step: To calibrate the clamp of Xhorse dolphin XP007 manual key cutting machine, you will need 2.5mm probe.
Now stick the probe in and tighten up.

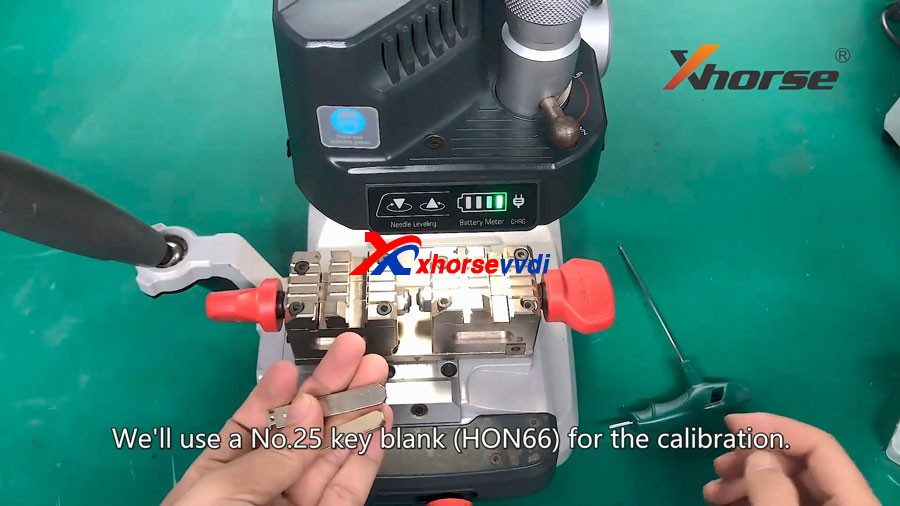

we use a No.25 key blank (HON66) for the calibration.
Insert the key into the clamp and tighten up.

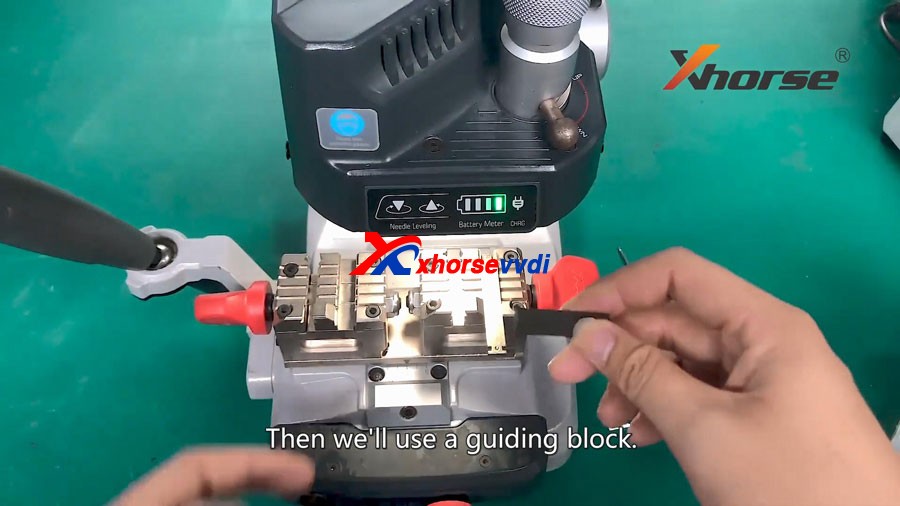

Then we will use a guiding block.

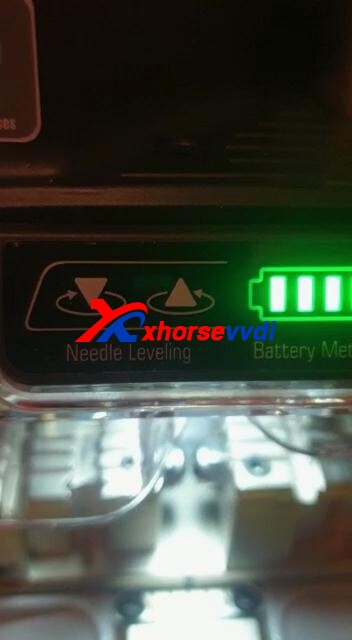

After that, we will need to pay attention to this two indicator lights (needle leveling and battery meter), this is a prepositioning switch knob, if it’s down, you can move the probe.
If it is up, the probe is stationary.

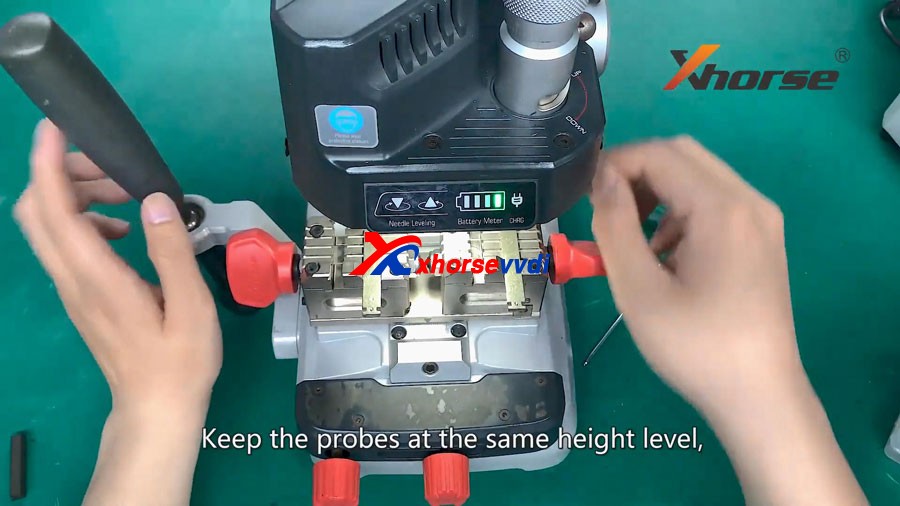

Keep the probes at the same height level.
Roll down the handle to see if the two lights are on simultaneously.
This knob is used for Micro-adjustment.
Turn the knob counter-clockwise, it will go down, clockwise will lead to going-up.

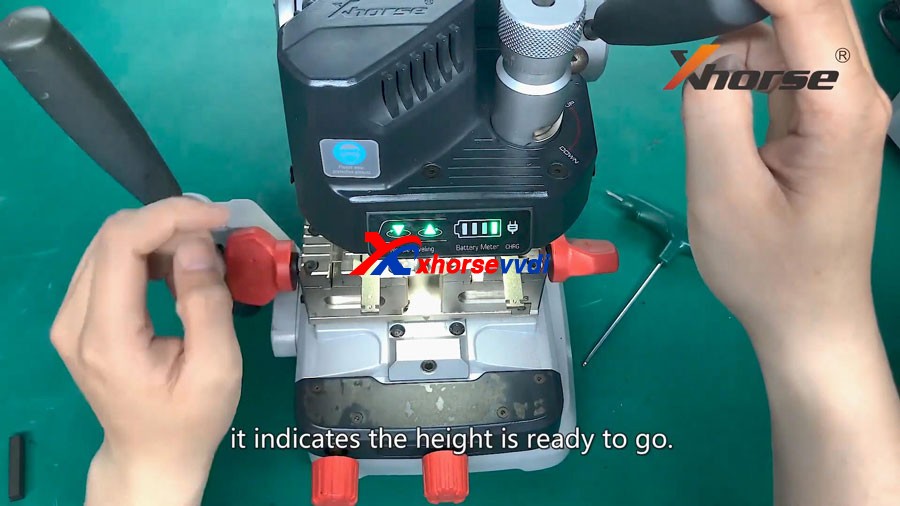

if the two lights go on at the same time, it indicates the height is ready to go.

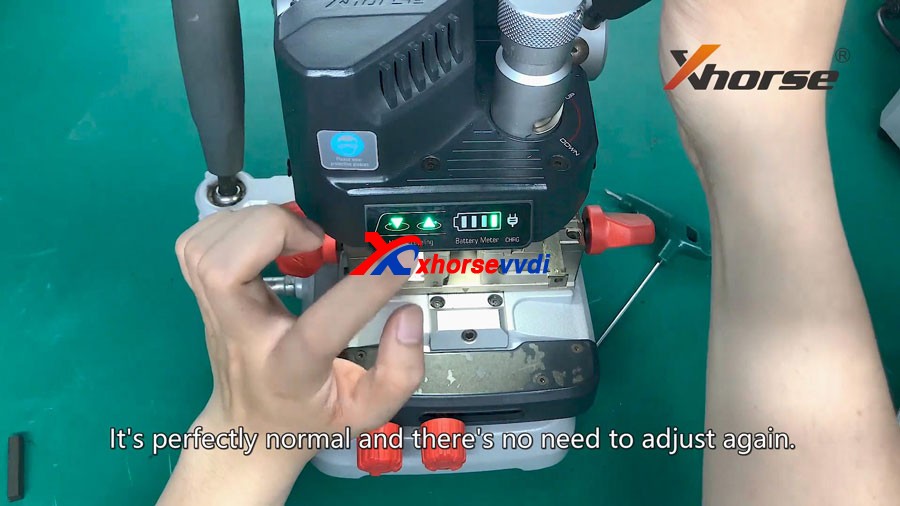

You can also try to press different positions, if one light is out, but now you press harder, it’s on. It is perfect normal and there’s no need to adjust again.
Now we will turn to horizontal collaboration.

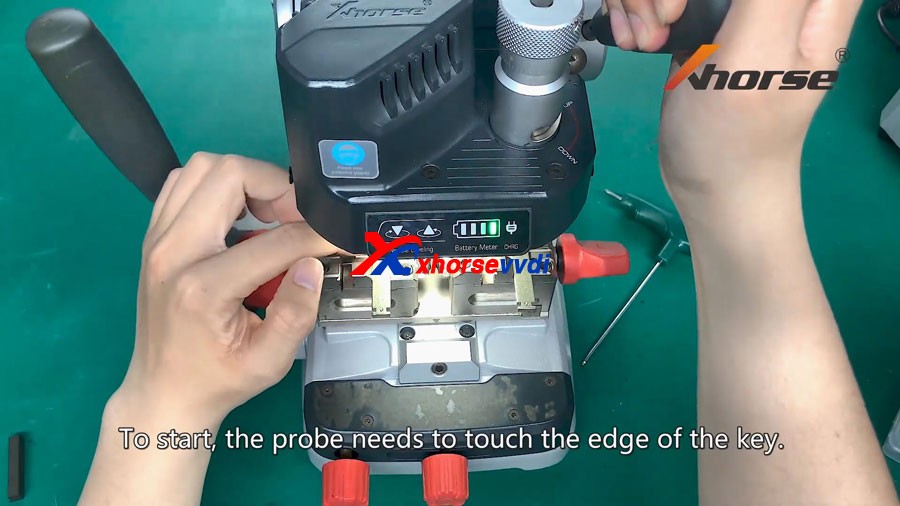

And we’ll do X-Axis calibration first, to start, the probe needs to touch the edge of the key.
If the needle leveling light is out, roll down the handle and rotate the handle clockwise.

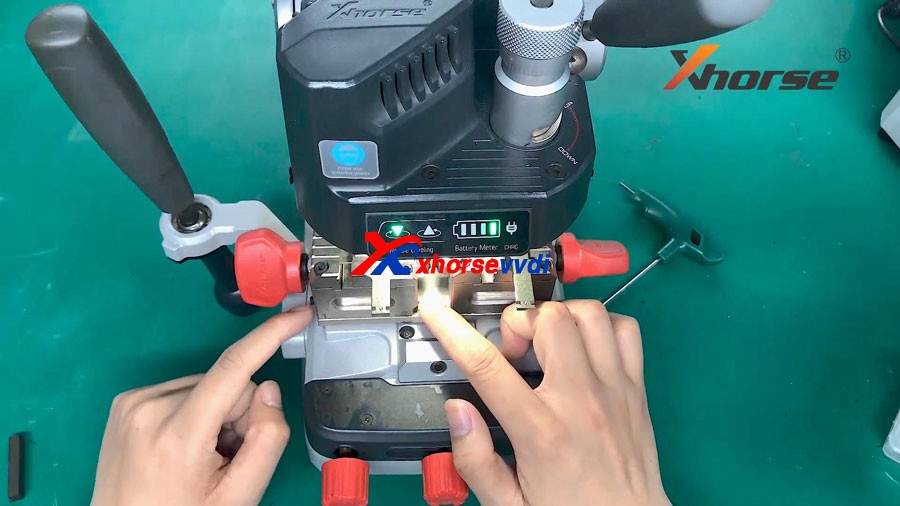

There are two screws in position 1 and position2 and we need to adjust the screw.
Now the battery meter light is out, we need to tighten the screw in position 2, if the l needle leveling light is out, we will need to tighten the screw in position 1.
Now try to slide the jaw.

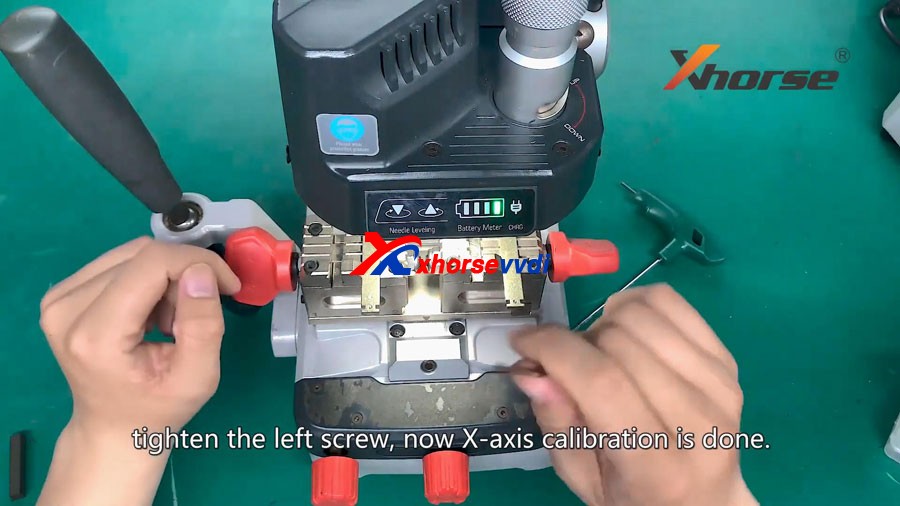

Both lights are on, tighten the left screw, now X-axis calibration is done.
Next we move to y-axis calibration.
Keep the handle fixed for y-axis calibration, we will need to adjust the position 3 and position 4.
Now the needle leveling light is out, we’ll need to loosen position3 and tighten position 4.

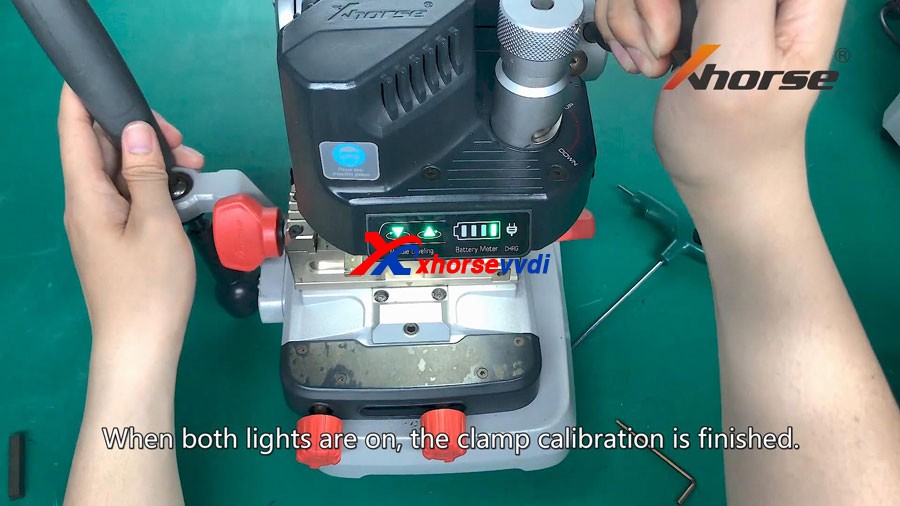

When both lights are on, the clamp calibration is finished.
After calibration,we will try to duplicate the key for you guys and demonstrate how Dolphin XP007 works.
If Dolphin XP007 is within the warranty period, please contact me to confirm whether it is the problem of the screen, the continuity or the sensor harness.
In fact, it does not affect the usage.
Just confirm that the milling cutter and probe are attached to the fixture during leveling.
Xhorse Dolphin XP005 key cutting machine is verified working fine with HU83, VA2 VA6 VA2en etc. It cut mostly VAG, BMW, Mercedes keys, OPEL , FIAT , Nissan , Dacia, Yamaha… It is good for AKL function. If not work in some work environment, there are some using tips to follow.
Xhorse Dolphin XP005 FW 1.4.9 HU83 Blade: works fine
I tried hu83 blade with Xhorse Dolphin XP 005 key cutting machine firmware version 1.4.9 , use 1.5mm cutter, cut 2 type , hu83 , hu83 extra, both fine.
If you made of the issue with HU83 cutting ( it’s the same using 1.5mm and 2mm cutter), please do full recalibration of machine first, after that the issue will be resolved.
Renault is for Megane 2 , Laguna 2 … work fine .
VA6 Renault & PSA works fine without problem, I use lishi va6 4 lifters, when I copy I use universal menu, never let me down or manually micro adjust menu . ( or manually copy with other fastest tool ).

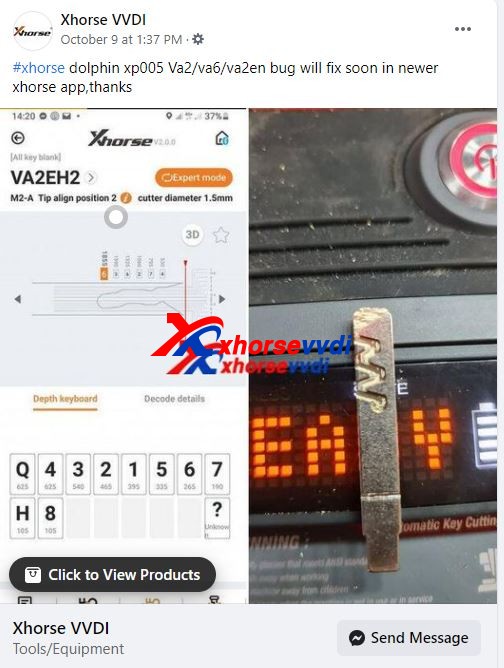

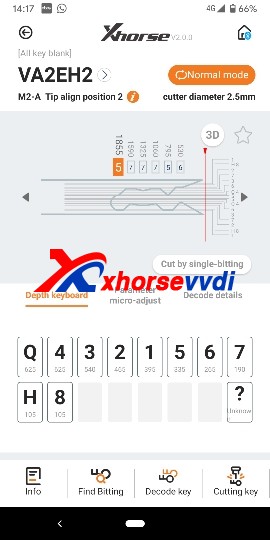

The VA6 problem is with cuts 1234Q. If you convert your code to cut on the 5678H side of the track they look correct.
2012 Clio 3 AKL, lishi decode from door 477743.
Megane 4 done.
Peugeot Partner done
Clio 3 done
Peugeot 508 done.
OK for decode Megane 2 & Laguna 2 , OK for AKL Clio 3 Laguna 3 Clio 4 Kangoo 2
Megane 2 2008 with Keycard. Urgence blade, copy is ok under: Renault Laguna.

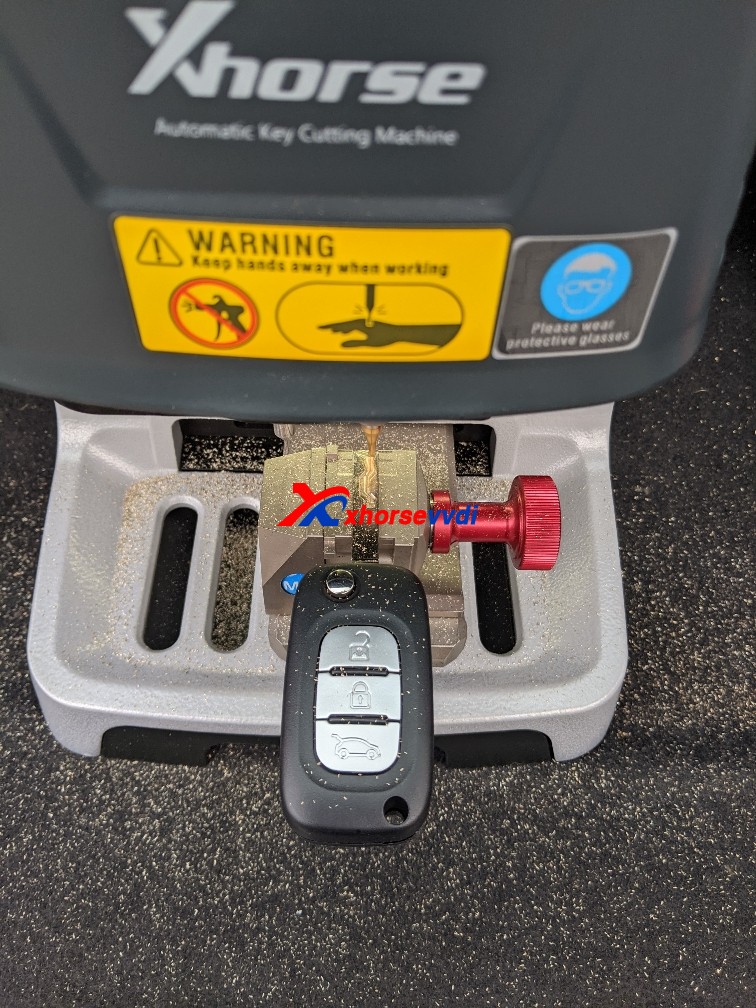

AKL clio 4 card using lishi laguna 3. And cut key by Dolphin XP005 all good. In database I have use: renault laguna after 2000.
In my experience, the Dolphin is first class on HU58, both decoding and cutting. It cuts a really nice key. Best machine I’ve had for HU58. I haven’t updated the firmware since I got it, though.
I cut mostly VAG, BMW, Mercedes keys, OPEL , FIAT , Nissan , Dacia, Yamaha … work fine.
AKL function : – BMW cutting by CAS code OK – Yamaha FZ1 cutting by code OK Decode & cut OK : NE72 , VAC102 , PSA VA2 , HU83 , SIP22 , NSN14 , YH35R , 2009-Renault emergency blade …
Lot of functions available only if tool are connected to APP ; decode by Photo , AKL by dealer code … Can correct one biting before or after cut ( good for SIP22 using first biting not available in door barrel)
I cut 100 key / months , work fine !
I use Dolphin xp05 only for very used keys , AKL , CAS2-3 code , label factory code …. ( Fiat 500 AKL : xp05 + Lonsdor = 5 minutes = no stress ).
Dolphin success to Decode & CUT Dacia HU136TE & HU136
Jaguar TBE1 8 cut tibbe. To cut correct, a the nr 2, can be made turning the FO21 clamp to pos 2, and a little bit deaper cut. This might not have the exact angle, but will be better then choosing either a 2 or 3 cut. This should be possible with the xhorse software.
Using HU64-2 option for Mercedes , also if car is before 2010 (which should be HU64). This works for me.
Ford transit custom 2015 hu101, copy key done perfectly.
AKL
Va6 renault done
Hu83 psa done
Va2 psa done
Sip22 done
Toy48 done
Hu66 done
Xhorse Dolphin XP005 Using tips:

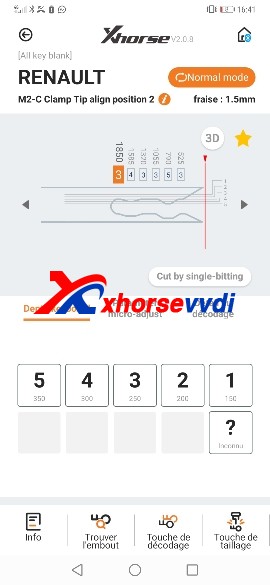

1st Question: why Renault have 5 deep when Lishi laguna3 have only 4 deep.
Tip: You have old lishi like me. Read between the lines and will work.
2nd Question:

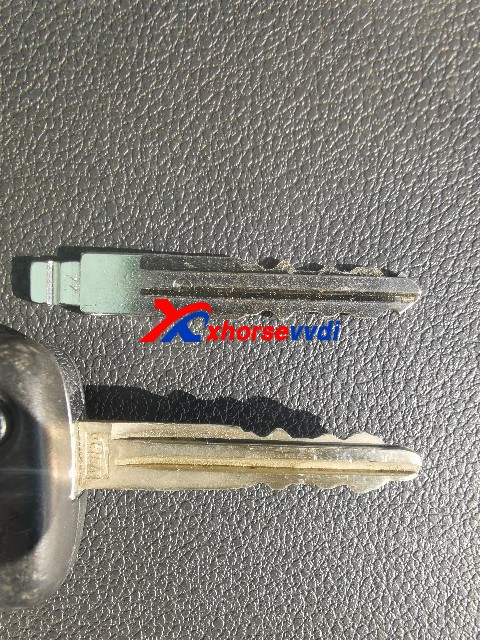

Nsn14
Bad decoding and so bad Cuting.
Tip: used keys need manual adjust , your key is totaly destroyed by neiman ; 2-3-1-3-3-2-3-1-2-4
test decode by photo in this kind of key
Please use Lishi or eyeball.
A bad decoding, always gives you a deeper cut, not a higher! This will tell you that it is a conductivity problem.!
And it only snaps the probe, if the conductivity is bad!
Always scrape key edge, before decoding! A any edge peace of metal i can find, to drag along the edges. And i have a copper brush, to clean track keys. Brush and scrape, the inner track, and especcialy the end stop of the key track. And the key shoulder that is clamped, needs to be clean. (with regular keys, the small inbus screw marks the blade, so that ensures key to clamp conductivity)
Takes 30seconds to clean the key, changing probes takes longer.
I still decode some, with the machine, and always check by eye. After machine decoding, place key before screen, so it allignes, and you will see what sticks out or is missing.
3rd question: It won’t decode JLR HU101 emergency blades. Material must not be conductive. It just crashes into the tip and snaps the probe.
Tip: SIMPLY USE PHOTO TO DECODE , work fine for plastic key & other no conductive keys .
4th Tip: you do dirty key, you can damage tracer for example every minute
I always wire brush my keys before inserting
Or if you forget to shave the outside of the aluminum keys to get off the oxide layer say on a jaguar key
or a plastic key if you dont know how to work around them
Must be smarter than the machine
These things will do some silly shit if you let them
Xhorse Dolphin XP005 Failure List:
– Clio 3 , Clio 4 Megane 4 , C4 II , DS3 …. I use defu for copy
– Personally I use automatic key cutting only for AKL & DEFU-368 for duplicate in 30 seconds / side !
……
PS: for more feedback and operation guide, search ” Dolphin XP005″ in this blog.
Alright, Xhorse Dolphin XP005 is good for its price, and will be better and better because it will keep update.
