Too many keys, hard to classify, would like a Key with unique design? Luckily, Xhorse CONDOR XC-MINI PLUS II featuring thte Key Blank Engraving function,allows users to add and delete texts and pictures, resize and turn them to perfectly design a unique Key.
Today,Xhorsevvdi took an Xhorse’s “ X” image as an example
Tips: The image format must be PNG
Procedure: Step 1: Insert the engraving cutter and the key blank Tips :Engraving cutter and the key blank installation:
Install the key blank on the M5 Clamp as shown in the figure above(The vertex cannot be occluded by the key blank please use a special engraving cutter)
Step 2: Send the picture you want to engrave to the machine 1.Pair the machine with your smartphone via Bluetooth. 2.Send the picture
Step 3. Choose the picture and start to engrave
Press “HOME” icon >> Click “mini plus II” icon>> Key blank engraving>>add picture>>Choose the picture and press OK>>Adjust the image to appropriate position then press Start engraving
Now Xhorse Condor XC-MINI PlusII Key Cutter starts to carve automatically,The first dot engraved will start from the highest point on the left the image
This article is about to show you how to learn and cut Mini Cooper HU100R key using this new Xhorse Dolphin XP005L. First let’s see some highlights of this machine:A complete protection cover and an adjustable touch-screen
Smart LED indicators.
Then start the procedure. Step 1. Vehicle choose Open it up and select,
Vehicle Database>>Mini>>[All Key Blank]>>HU100R
Step 2. CalibrationInstall and calibrate clamp M5 side B as instructions.
Step 3. DecodePress “Learn key”.
After Decode key completed, check the result by original key.
Step 4. CutPut new key blade in clamp M5.Press “Cut key” and wait.
After Xhorse released the key reader, we received tons of questions on this very new tool , To start, we have to answer one question that we are frequently asked
Q: Why Xhorse developed this product?
A: well, Key reader has three significant features:
1. It is able to identify aluminum, keys plastic keys as well as metal keys. aluminum and plastic keys are not supported in key cutting machines. and it’s a bit troublesome to get the baiting codes,so the tool greatly compensates for that
3.It’s much more accurate and faster than taking photos to identify key data.
A: Will key reader work on the App?
Q:Sure! you can either use your smartphone and key cutting machines like dolphin xp005 or use the Key cutting machine with a screen such as condor xc mini plus to copy a key.
With a smartphone, KEY READER gives a new level of working experience, allowing locksmiths to get the key bitting code even without a key cutting machine. KEY READER provides an integrated solution for a wide range of users.
But using key cutting machines with screens, you can directly cut the key with simple clicks on the machine
Xhorse Dolphin XP-005L system needs to initialize for first use. Learn the steps and basic settings below to start your smart cutting experience.How to connect Dolphin XP-005L with a smart phone?
Download Xhorse APP in App Store/ Google Play, or scan the QR code directly;
Power on XP-005Lmachine, open Xhorse APP and switch to the CNC machine interface. Press “Switch Device >> Dolphin II”;
Press “Select”to turn on Bluetooth, select XP-005L SN to connect (Users can set up automatic connect according to needs).
How to do cutting calibration?
Press on Dolphin II tablet screen: System >> Machine Parameter >> Cutting Calibration >> Select the cutter diameter installed;
Follow the tips, then press “Start”;
– DO NOT use a cutted key, make sure it’s a brand new HON66 key blank.- Make sure the probe and cutter at same height.- Insert M5 clamp and rotate to side A.
Clean the cutter, probe and working area, press “Continue”to finish.
What’s in Dolphin XP-005L System option?There are 6 main functions in System: machine parameter, system setting, history, my favorite, update center and WLAN connection. Here users can perform basic operations, such as machine calibration, cutting setting, language setting, query history, update version, WLAN connection, etc.
Machine Parameter
Here users can self test machine, calibrate various parameters, set cutter diameter, cutter speed and move speed during cutting.
Cutting setting: set the spindle speed, move speed, cutter diameter and buzzer switch.
Cutting calibration: calibrate machine for first use.
Self test
– Deviation detection: detect M5 clamp parameters.- Motor measurement: check the status of X, Y, Z axis and spindle motor.- Electrical conductivity: test the conductivity of probe and clamp, milling cutter and clamp.- Altitudes detection: check whether the height of the probe and the milling cutter are on the same level.
Parameter list: display relative parameters between probe and milling cutter recorded by the machine.
System Setting
Language setting: change system language, covers English, Spanish, French, Thai, Polish, Italian, Portuguese, Hindi, Hebrew, Korean, Indonesian, Chinese.
Set password: a startup password can be set to prevent children from touching the machine.
Unit setting: set millimeters and inches freely as common units.
General setting: switched on/off Bluetooth, adjust screen brightness, machine volume, time and date.
History
Users can query machine cutting records, make notes and cuts here. This function requires networking.
My Favorite
Users can collect the specific key blanks in Vehicle Database or Cut By Code. Finding the options collected here as a cutting operation shortcut key.
Update Center
How to update Dolphin II XP-005L firmware & database version?Follow the path to press on tablet:System >> Update center >> Red label >> Update >> OK Here will display the current system firmware & database version. The updateable version will be marked with red color. Otherwise, no need to update.
WLAN Connection
Here to connect Dolphin II XP-005L machine with Internet.
2021 newest Xhorse Dolphin II XP005L key cutting machine will be launched. It’s an upgrade version of Dolphin XP005, XP005L with Adjustable Screen and Protective Cover, total weight is only 14kg,asy and portable to work without pressure.
Xhorse XP-005L Features:
Buit-in database
Support APP Control
Intelligent operating system
Smart LED indicator
Angle adjustable LCD touch screen
Support WiFi and Bluetooth
All-aluminum body structure
High precision ball screw
High rigidity cross rail
Cutter and probe work in parallel
Support Multiple Clamps
Support Sided/Track/Tibbe Key
Update online: Machine firmware and database upgrade via WiFl directly
Xhorse XP005L Structure:
Xhorse Dolphin XP-005L M5 Clamp
M5 clamp with two sides of A and B. Users can turn the clamp surface to cut according to cutting needs, it’s no need to repeated install and uninstall to replace clamps. Here are the method of using the M5 clamp. 1) Loosen the “key lock knob” counter clockwise to make the right slider of the clamp the right limit 2) Turn the movable module clockwise, and turn the clamp from side a to side B. Tighten the key lock knob” clockwise to lock the clamp.
Dolphin XP-005L Specification: Input voltage: 24V DC Power: 160W Principal axis rotation speed: 12500rpm Motor Torque: 0.15Nm LCD resolution: 1280*720 Working temperature: 10-50°C Humidity: 10-90% Machine size: 390mm:220mm*270mm Package size: 495mm*400mm*360mm Net weight: 13kg Gross weight: 18.5kg
Look here, What are the new features in Dolphin II XP005L :
HD Touch Screen
Users can directly complete operation on the screen. High definition screen minimizes eye fatigue. The machine adopts an angle-adjustable 5-inch capacitive touch screen. You can set the angle of the screen based on actual needs.
Innovative Colorful Indicator Lights
The indicator light changes color with the change of real-time working status.
Massive Vehicle Database
Built-in powerful database covers over 100 car brands, 2,000 car models and 20,000 key data. Accurate key data, detailed parameters, and clear key graphics. We provide a lifelong database upgrade service for free!
Portable Solution
Thanks to its compact design, lightweight, much easier to take it outside and provide users outdoor and roadside services. Built-in well-known lithium battery, stable and reliable, support cutting works without power supply access.
Transparent Protective Shield
The transparent shield enables users to check the real-time working status while preventing metal debris from spattering.
Manufacture Craftsmanship
All-aluminum body structure; Manufactured by German-made DMG CNC machine to guarantee high precision cutting results. The finished keys passed the rigorous testing of the Optical Instrument. A wider workbench, strong and steady, make your works more productive. Maintain excellent performance even under extreme weather.
Multi-purpose Clamps (M5 Clamp)
A wide duplication availability guaranteed by a variety of functional clamps (Standard equipped M5 clamp (M1 and M2 2 in 1), optional M1/M2 Clamp, M3 Clamp, M4 Clamp.), support multiple key types, standard single sided, standard double sided, 2 track external, 4 track external, dimple, channel track, 4 track internal, F021 & Citroen SX9 keys, residential keys, etc.
Support Bluetooth and WiFi
Support directly upgrade online via WiFi connection. Control the machine by the Xhorse APP on your smartphone or other intelligent terminals via Bluetooth.
Issue:Condor XC-Mini Plus, I can decode a key but cannot cut a key. The cutter will not spin. I get message on screen “Cut Fail, 38 (Error Code=38)”.
Then he did Stepper motor test and send us results as our technical support required.
How to do Stepper motor test?On Homepage, selectSelf Test>>Stepper motor testSelect respectively “X” “Y” “Z” “Main-axis” to test motors.
Given the result of not-working main-axis motor, the possible reasons could be on firmware or the power board.Here comes the Solution:1)Re-update firmware, make sure firmware gets the latest version.2)Take apart the Condor Mini key cutting machine to test the power board.Note: If you don’t know how to do, do not risk and ask professionals for help.If method 1 doesn’t work, we need to take apart the machine.Unplug&plug all cables on the power board once and watch the indicator change.Feedback: Red light is on solid, not flashing. Find a black wire loose, press it back into plug and machine works.
The other day we’ve talked about the update error of Condor XC-Mini Plus that it cannot boot or be identified by the Upgrade Kit, also including how to check the power board. If you meet the similar problem, go check:
Recently we receive his feedback that he still cannot update the device after replacing the power board, and the problem is the device and the Upgrade Kit got stuck when updating.
Xhorsevvdi technical support asks for his serial number (SN) and CONDOR MINI’s homepage picture for analysis and gave the Solutions: 1.Close all anti-virus software and system firewall. Enter “Windows Security” interface. Press “Virus & threat protection” and “Manage settings”. Turn off all options.
Note: Always remember that turn off all anti-virus programs when it comes to the update and installation of Xhorse software.
2.Re-install drivers and reboot the computer or try another computer.
Last we also receive the message that the customer’s device can be identified and update successfully.

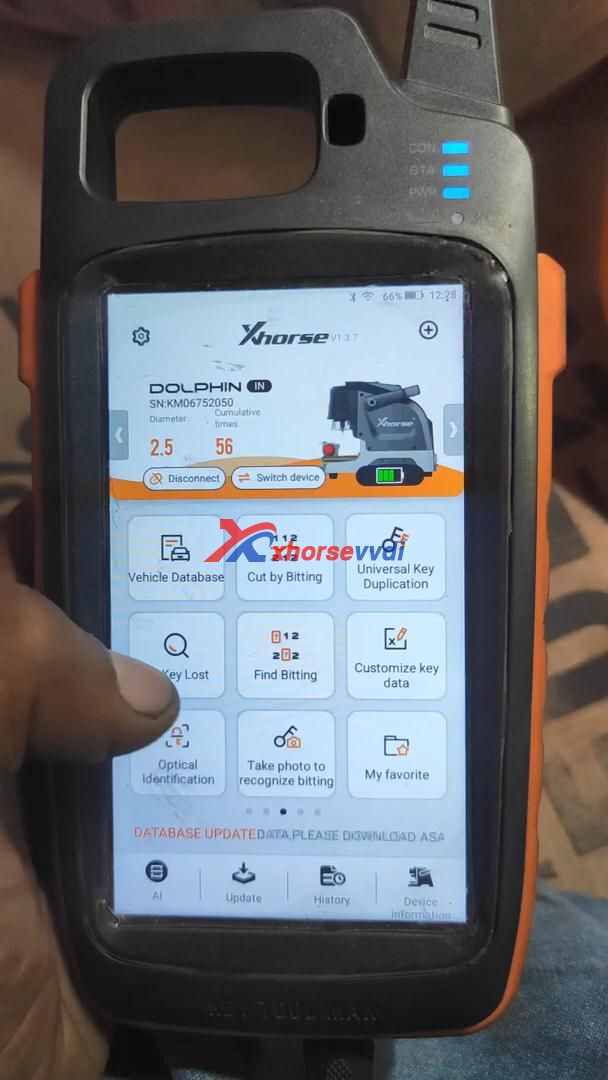

Connect VVDI Key Tool Max and Dolphin XP005 key cutting machine via Bluetooth for smart control, prepare an original key and a new one for ready, then get to start:

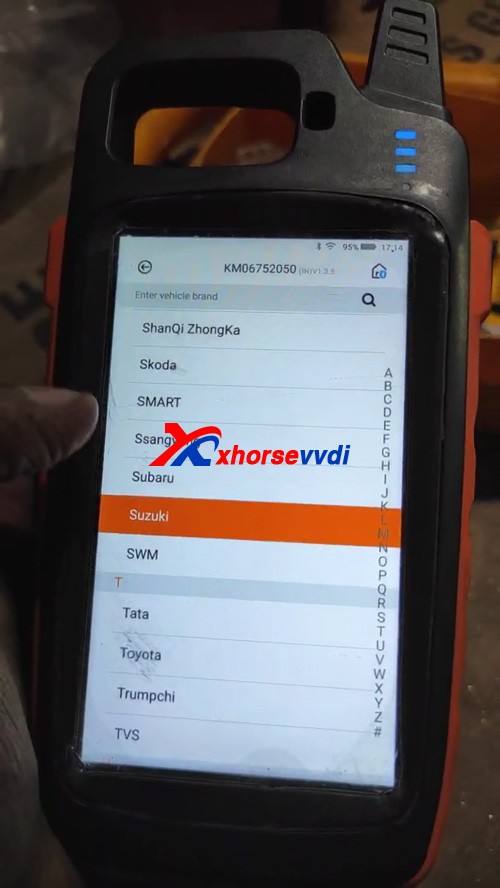

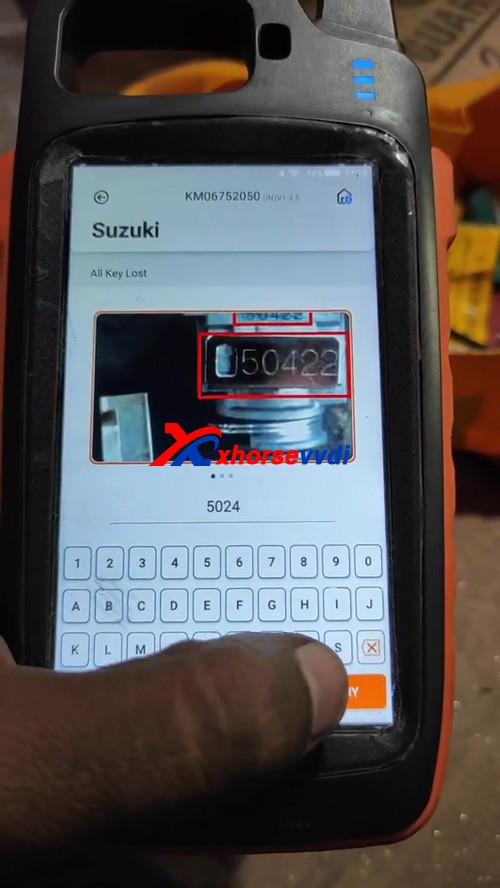

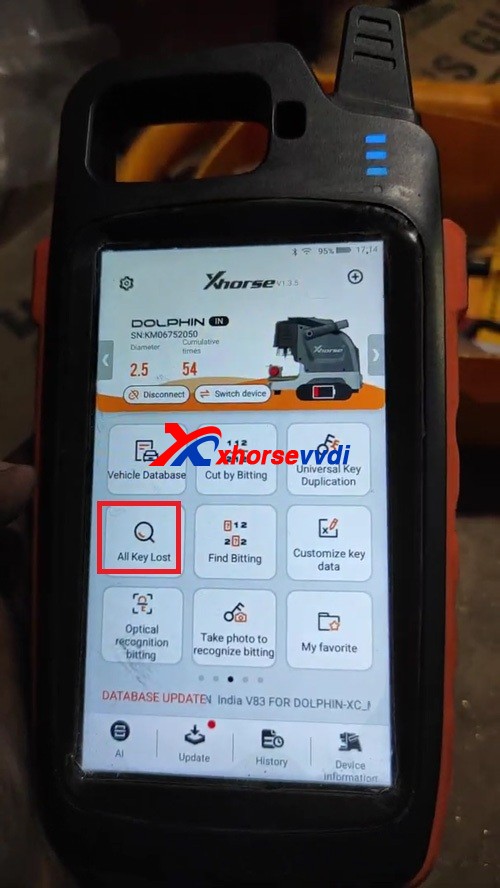

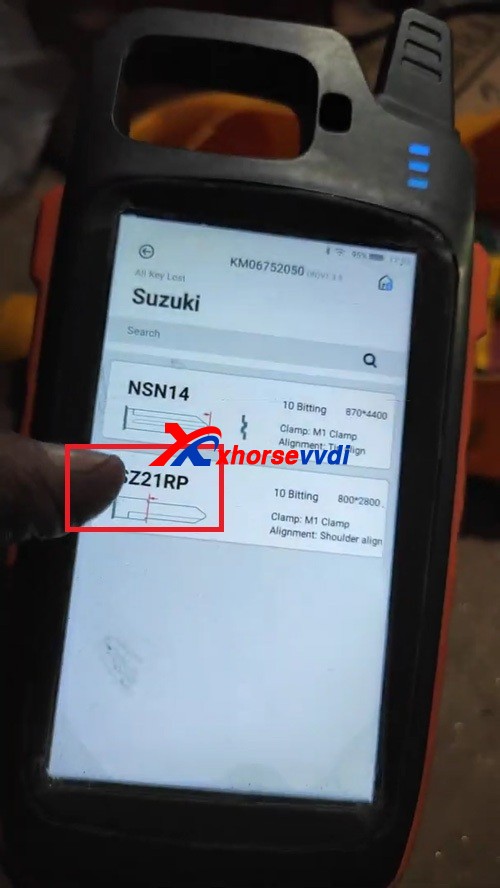

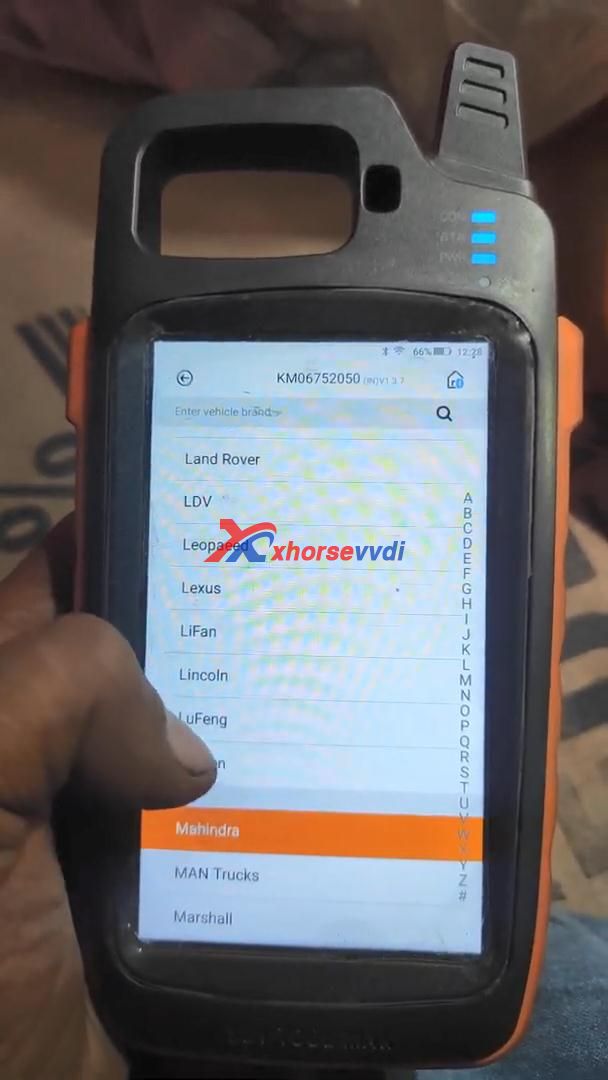

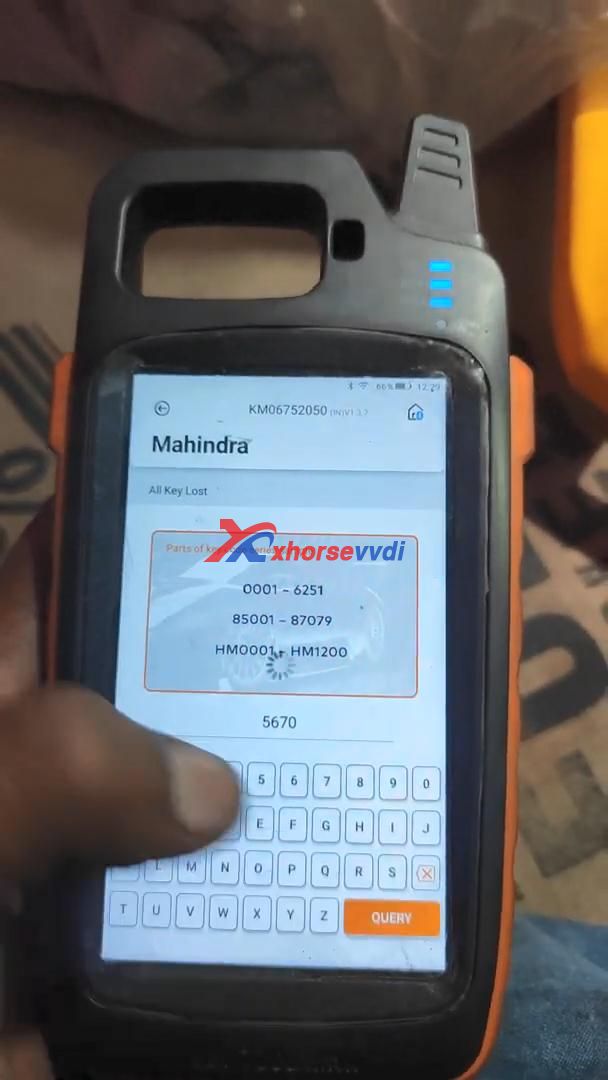

All Key Lost>>Suzuki>>input the number 5024>>SZ21RP

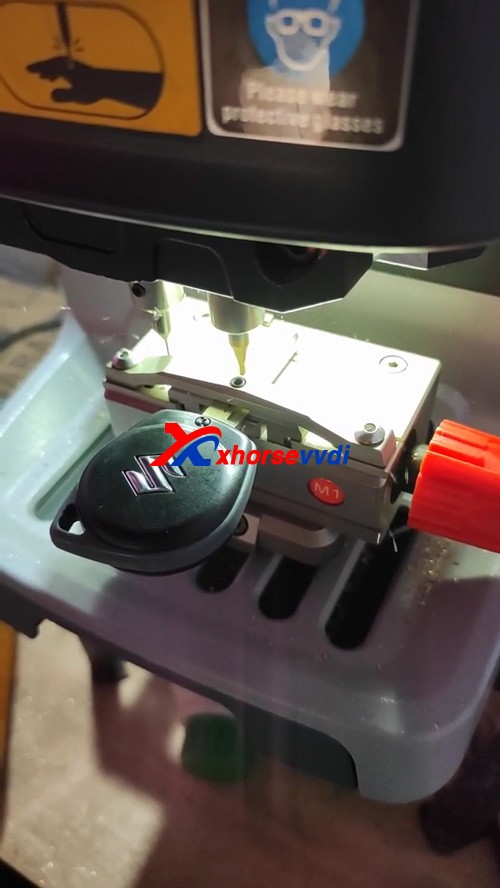

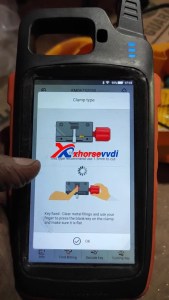

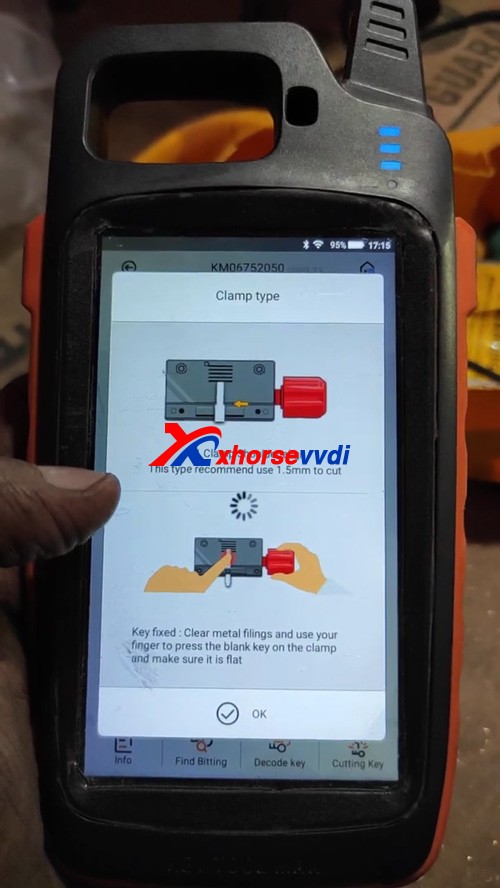

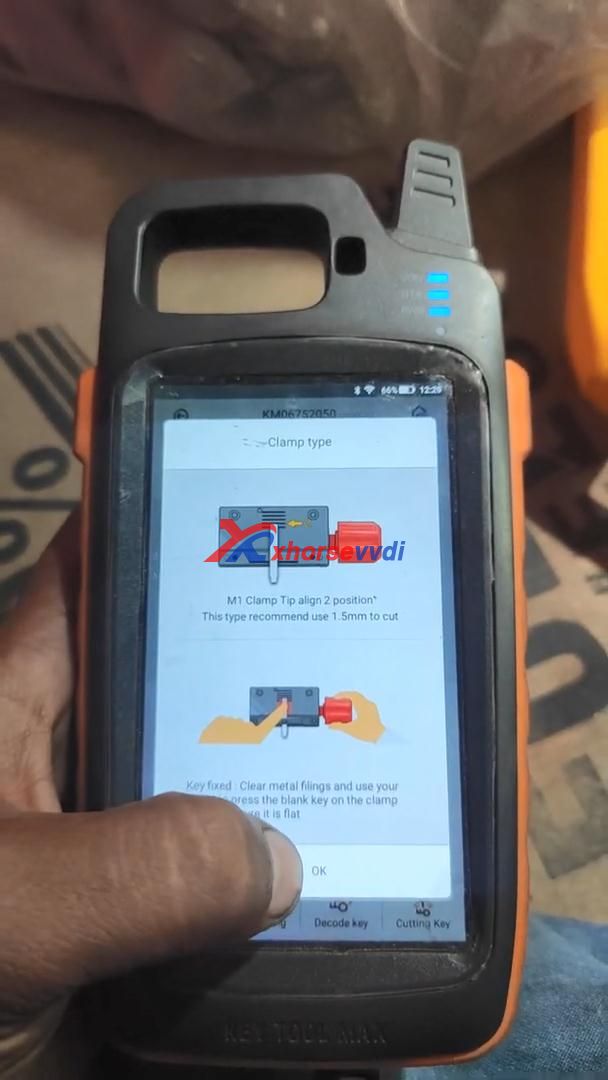

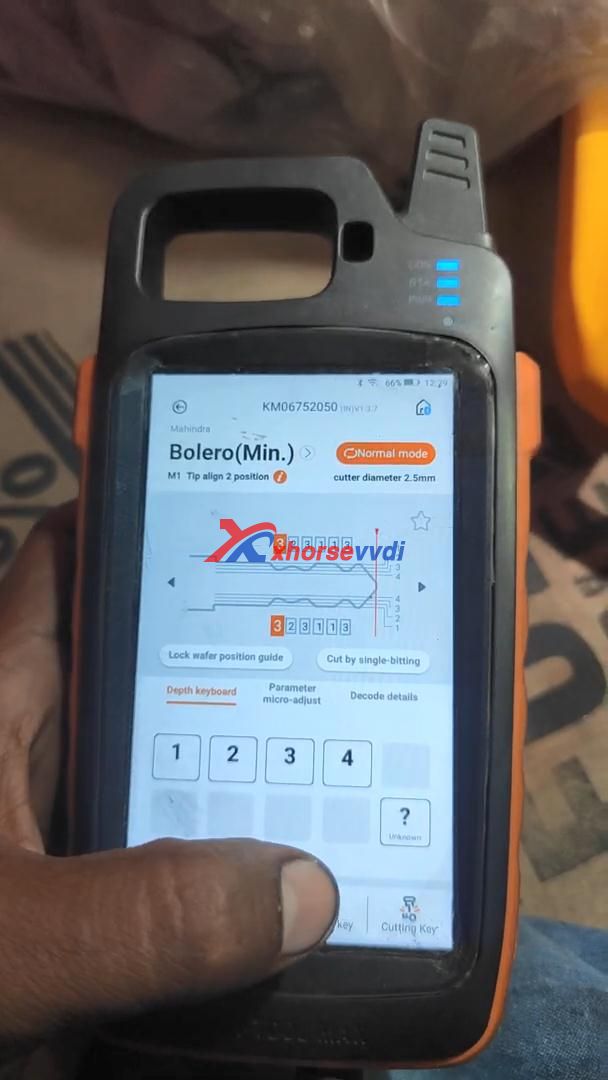

Please follow “Clamp type” to align M1 clamp tip to 2 position, this type recommend use 1.5mm to cut.

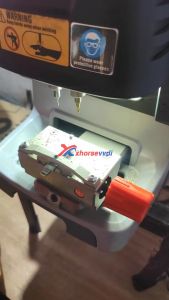

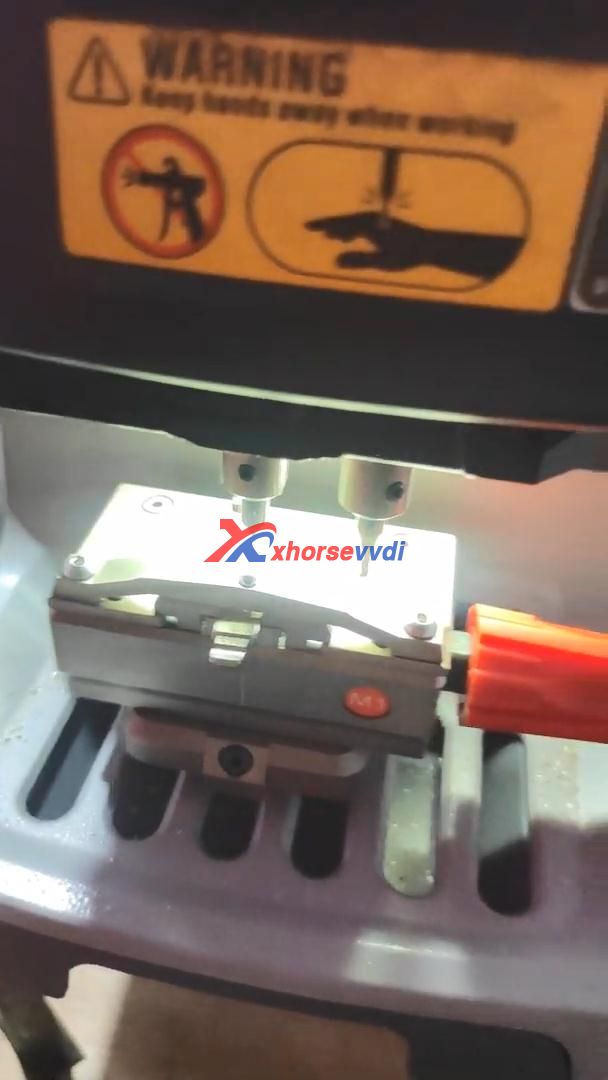

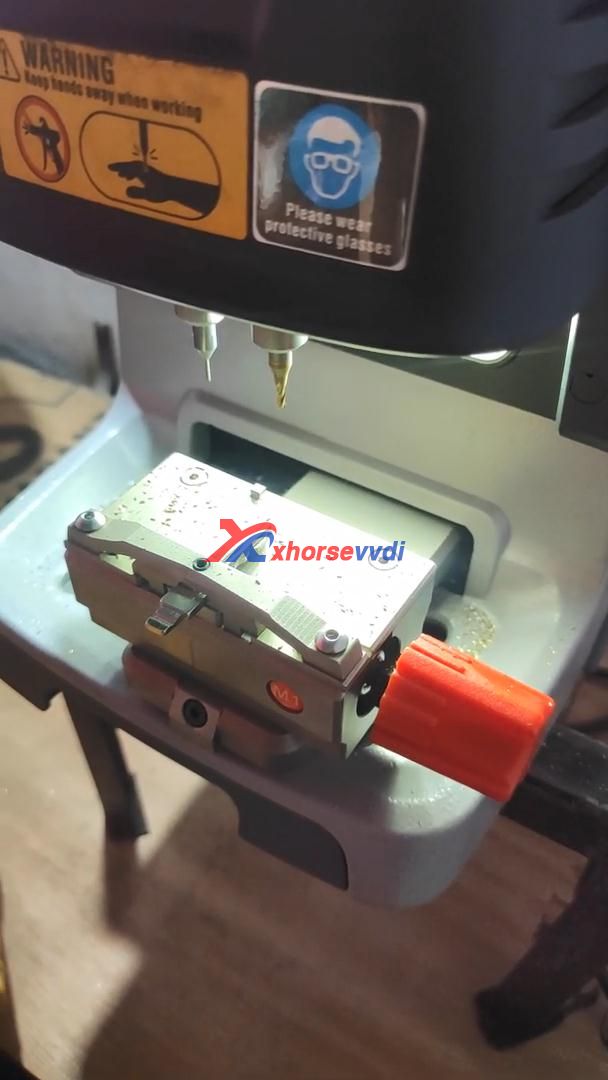

Key fixed: clear metal filings and use your finger to press the blank key on the clamp and make sure it is flat

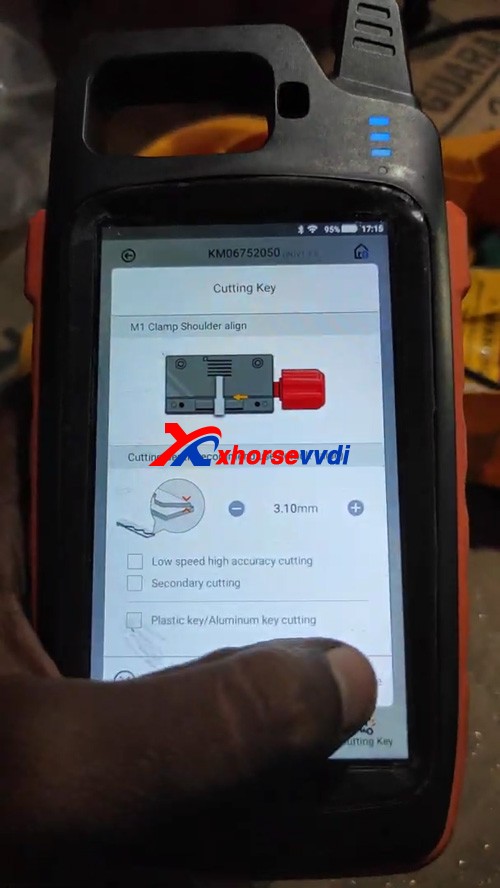

Select “Cutting key” and continue to make sure the cutting depth.
There is a option “Find Bitting”, enter it and select car make to confirm, then select key type. Enter the bitting you know. Enter the unkown bitting as “?” and click on “Find Bitting Code”.
Next part is about how to get cutting bitting with Dolphin XP-005.
Enter Dolphin main menu
Select “Find bitting”
Select a car make.
Select or put in the key blank type.
Put the known bitting and replace unknown bitting as “?”.
Then click on “Find Bitting”
Final part is to use the key bitting to make key, here take Dolphin XP005 for example:
Click on “Cut by Bitting”.
Choose a key blank type.
Choose the key type.
Follow the picture show to fix the key.
Select proper side of clamp and fix the key in correct position

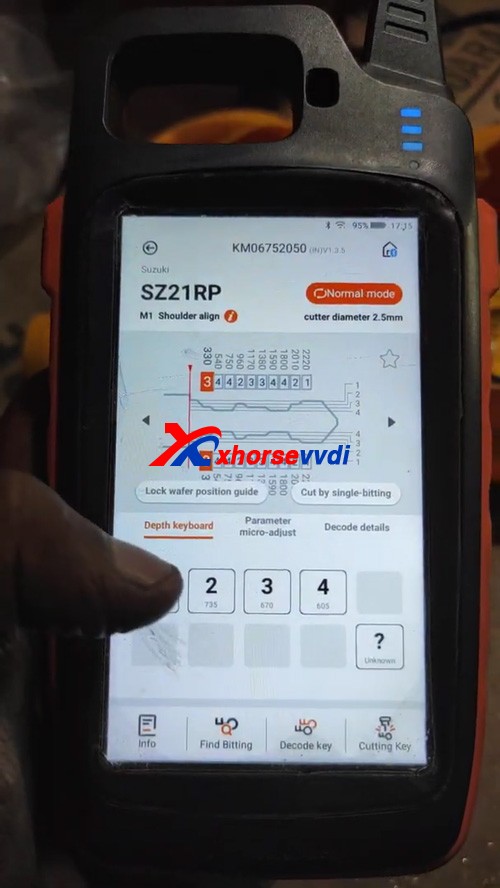

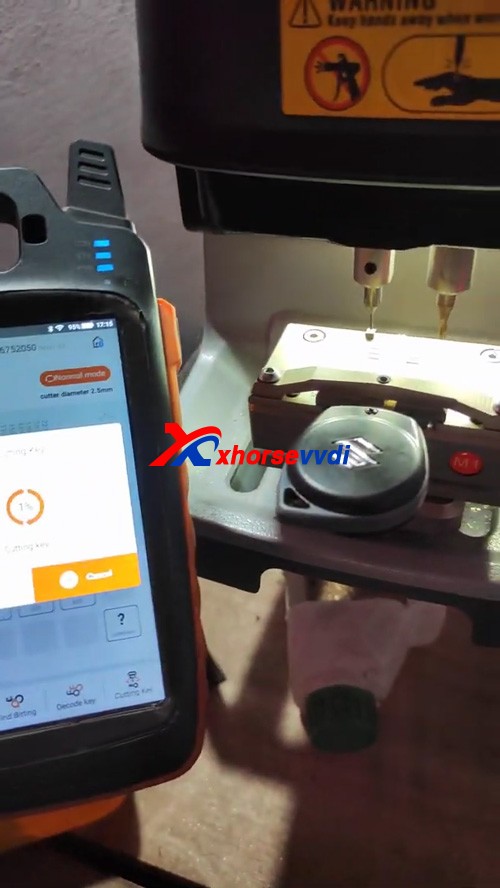

Put in the key bitting and check all the information before you click on “Cutting key” for making new key.
